Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 167

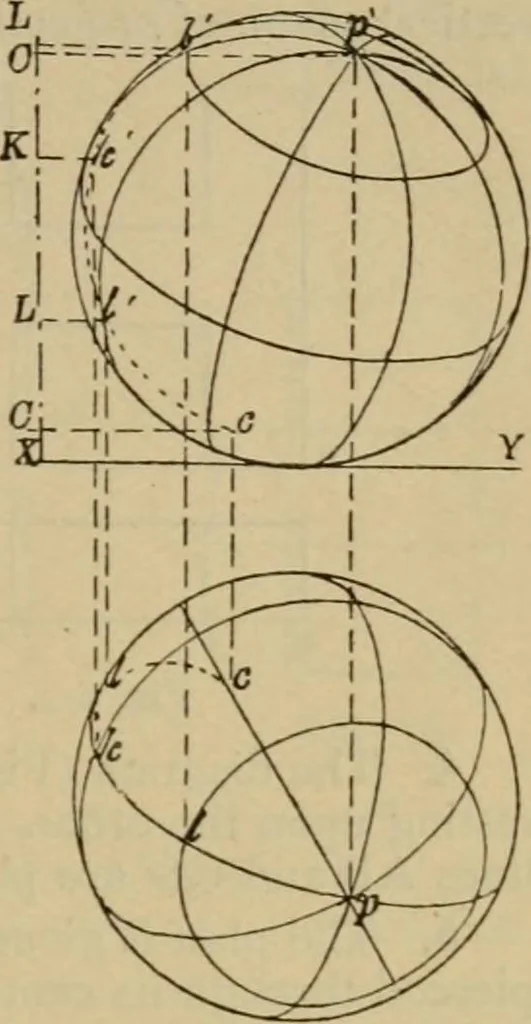

plane inclined at an angle of60° with the V.P. Scale ^ full size. Fig. 269. Draw the line cp at an angle of 60°with XY, for the plan of the axis, and onthis line complete the plan from Fig. 268 B.Perpendicular to XY draw the line XL,and set off the distances X, C, L, K, C, Lequal to the distances… … EXERCISES. 1. The plan is shown of three bricks (Fig. 270), each 9 x 4^ x 3,one resting upon the other two. Draw an elevation upon the givenline xy. Scale (which need not be drawn) 2 to i, or \ of full size. (April, 98.)
Geometrical drawing · Design · Drawing
