Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 201

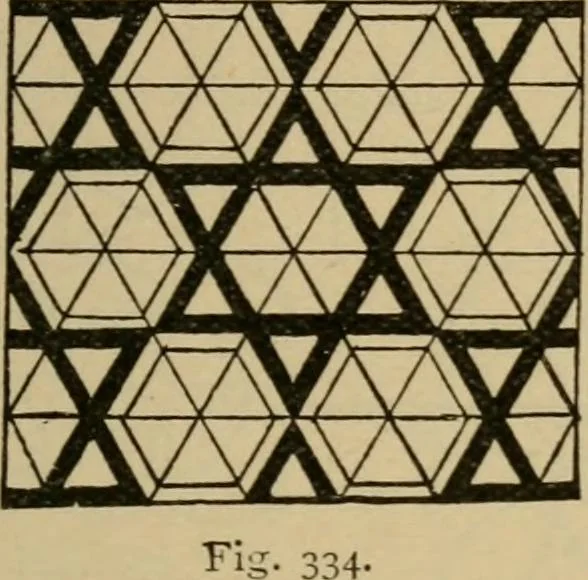

the upper part is a droptriangular framework, the triangles are only blackened to definethe triangles of the design ; the lower part shows a series ofinterlacing triangles, identified by their blackened centres.Fig. 333 is a hexagonal framework on a 60^ net, with verticals.There are three small… … ^ Fig- 335- ^ Z S Z \ / \ / \ / 1 S z-s_z s V i;/ ^ ^ 1 11 000 moo Fig. 337- Fig. 334 is a framework of interlacing triangles forming astar and outlining a hexagon. Fig. 335 shows a frameworkin which interlaced stars all fill up the pattern and give ahexagon form ; Fig. 336, a framework of unequal…
Geometrical drawing · Design · Drawing
