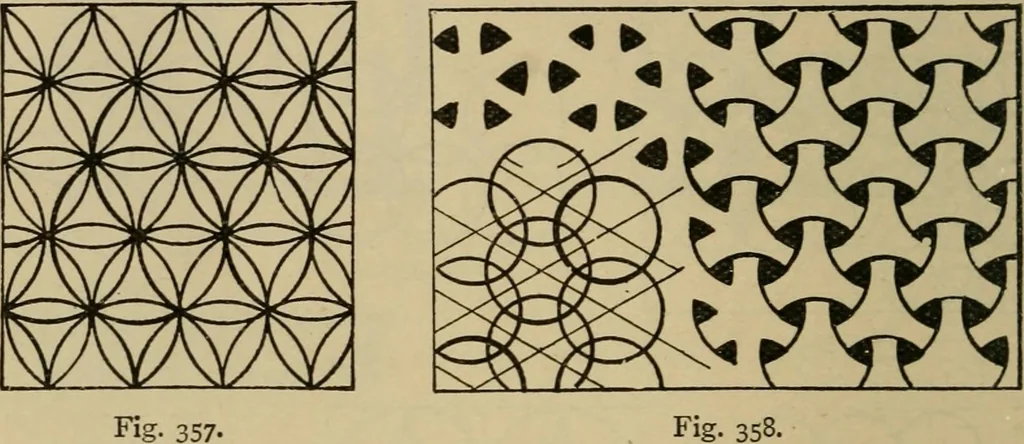

the frameworkby working with circles on a 45° net. Fig. 355 is a skeleton developed from selected semicircles ona square net, and Fig. 356 the same skeleton with additionalsemicircles which cover the vacant intervals. I go GEOMETRICAL DRAWING AND DESIGN. Fig. 357 is a complete skeleton ot… … Fig. 358. ^: X^ J V J x^x ^ \ ^ y J V J\^^ ) ^ C ~\ r ^^^^ Fig. 359- Fig. 360. Fig. 358 is the result of selecting interlacing circles based onthe 30° net and forms a beautiful geometrical pattern. Fig. 359 is a scale work on a square net, the radii of the circlesbeing less than the side of the…
