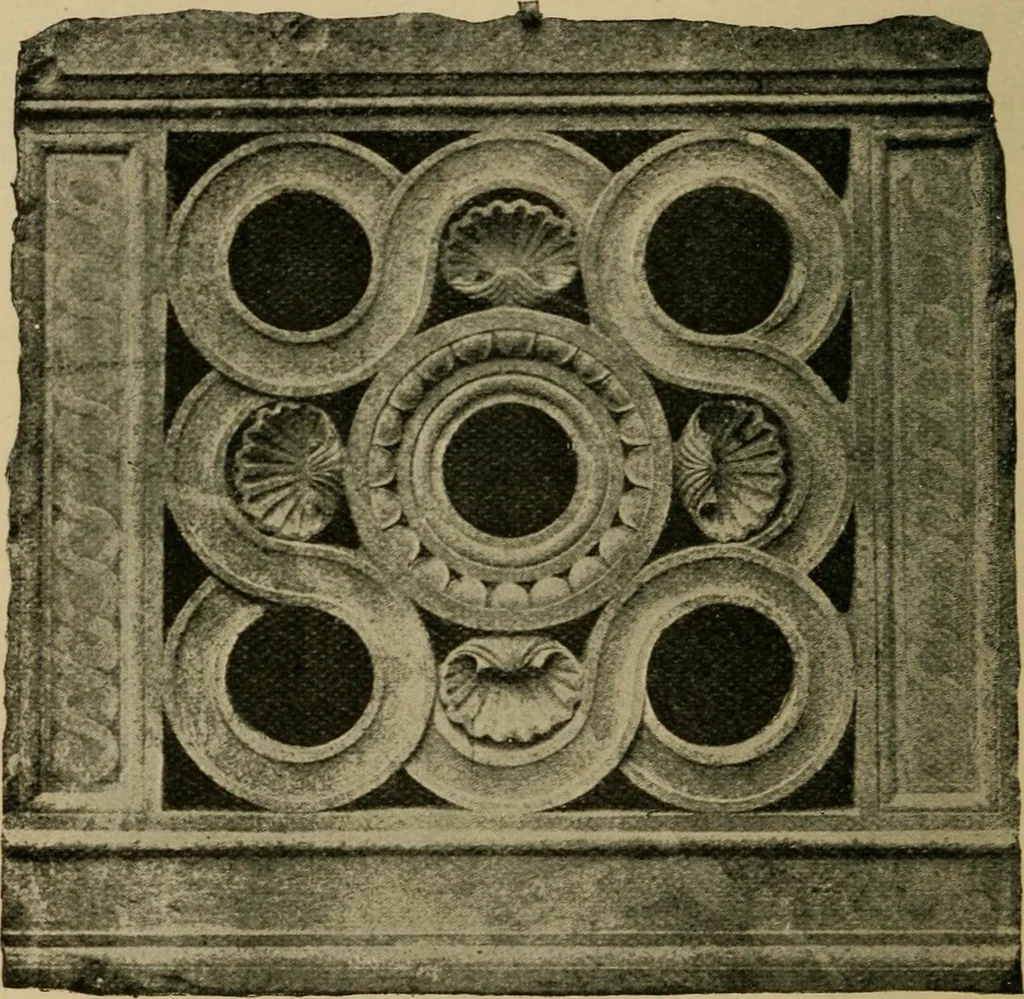

246 GEOMETRICAL DRAWING AND DESIGN. ornament should be sketched to show quite plainly what you considerthe unit of repeat. (18) 9. Regular pentagons will not by themselves cover a surface. Drawany form which in combination with regular pentagons would serve thispurpose. Make a diagram of the… … *10. Show what geometrical aids you would employ in drawing thesquare panel given. Make your drawing about the size of the figure. (18) ■^11. What geometrical means would you use in setting out the fanshown? Make your drawing about the size of the figure. (16) *12. Draw a plan of the given table,…
