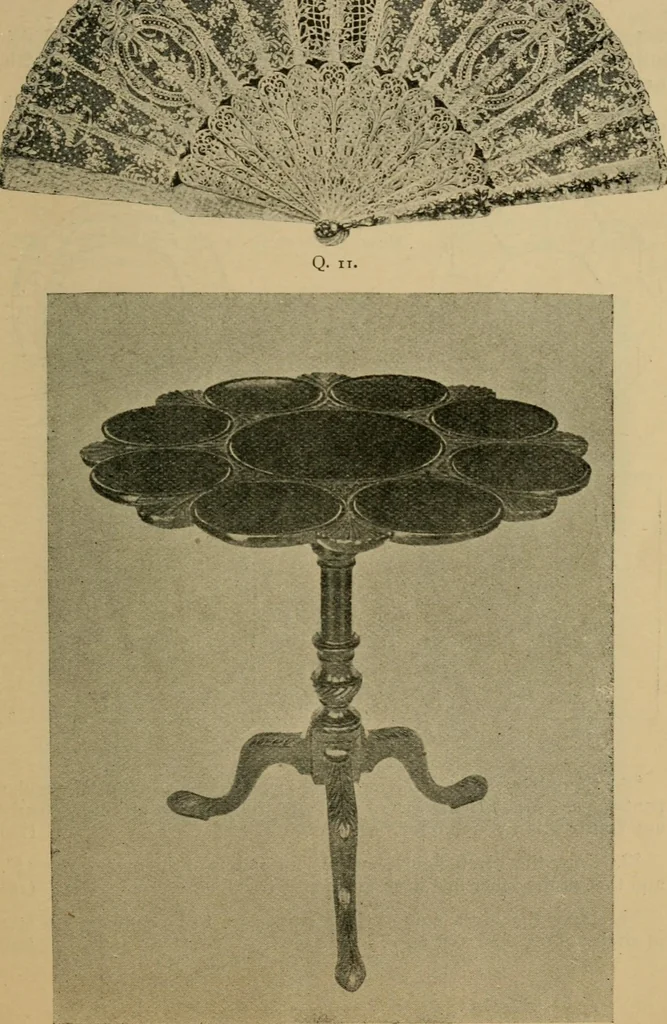

*10. Show what geometrical aids you would employ in drawing thesquare panel given. Make your drawing about the size of the figure. (18) ■^11. What geometrical means would you use in setting out the fanshown? Make your drawing about the size of the figure. (16) *12. Draw a plan of the given table,… … ii;??:«; irrtV c -.vivta?.. 248 GEOMETRICAL DRAWING AND DESIGN. III.SECTION A. 1. Make 2. plain scale, to show feet and inches up to 5 feet, on whicha distance of 3 6 is represented by 4I. Finish and figure the scaleneatly and carefully. Draw to this scale an oblong 3 3 x 2 5, and in the centre of…
