Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 272

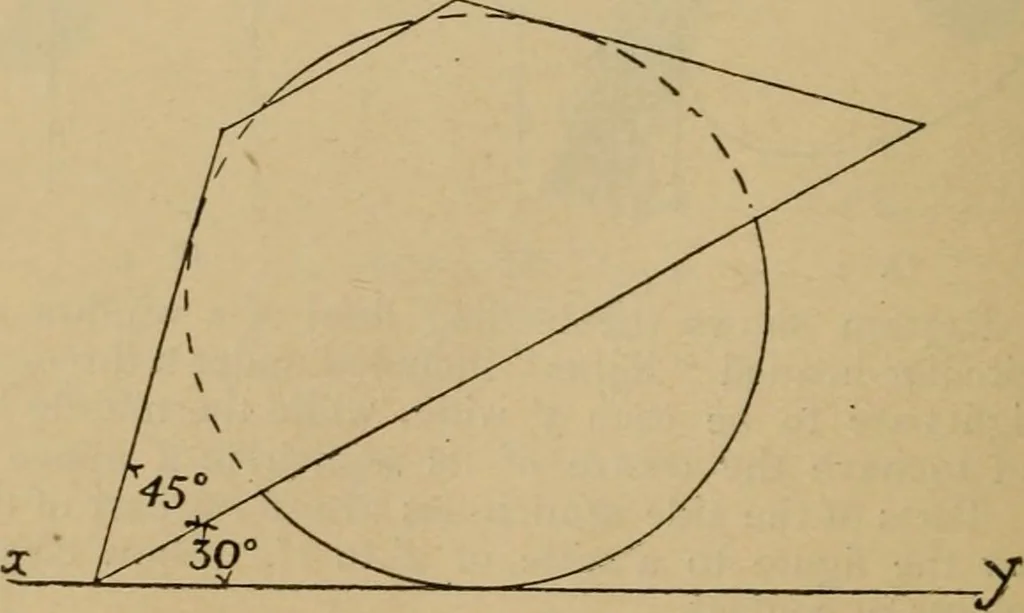

Q. 6. *7. An elevation is given of a sphere upon which rests a conicallamp-shade. Draw the plan of the shade. (20) … Q. 7. EXAMINATION PAPERS. 259 SECTION B. *8. Draw with instruments the main geometrical construction linesyou would employ in setting out the given pattern. Show plainly whatyou consider the practical or working unit of repeat. (20)
Geometrical drawing · Design · Drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
