Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 32

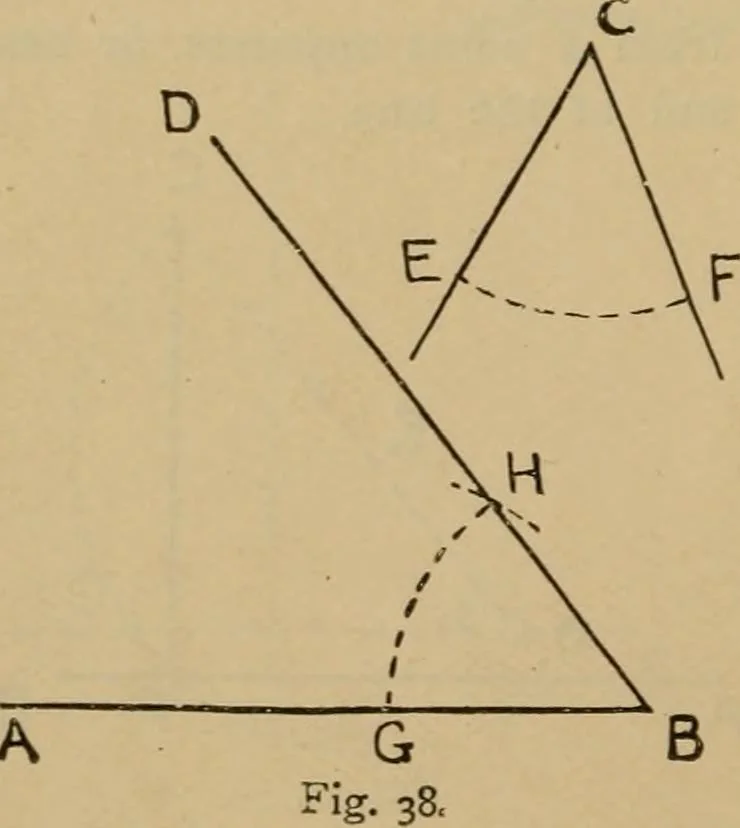

at B, with same radius ; join the points as shown, and the given line AB will be divided 10. c /A Another Method. Draw AC at any angle toAB ; AC may be of any con-venient length. With anyradius, mark off along ACthe number of equal parts re-\ quired; join the last division \ C with B ; draw lines… … From point C of the givenangle as centre, and withany radius, draw the arcEF: and with the sameradius, with B as centre,draw the arc GH ; take thelength of the arc EF, andset it off on GH ; draw theline BD through H. Thenthe angle GBH will be equalto the given angle C. PROBLEMS. 12. To bisect a…
Geometrical drawing · Design · Drawing
