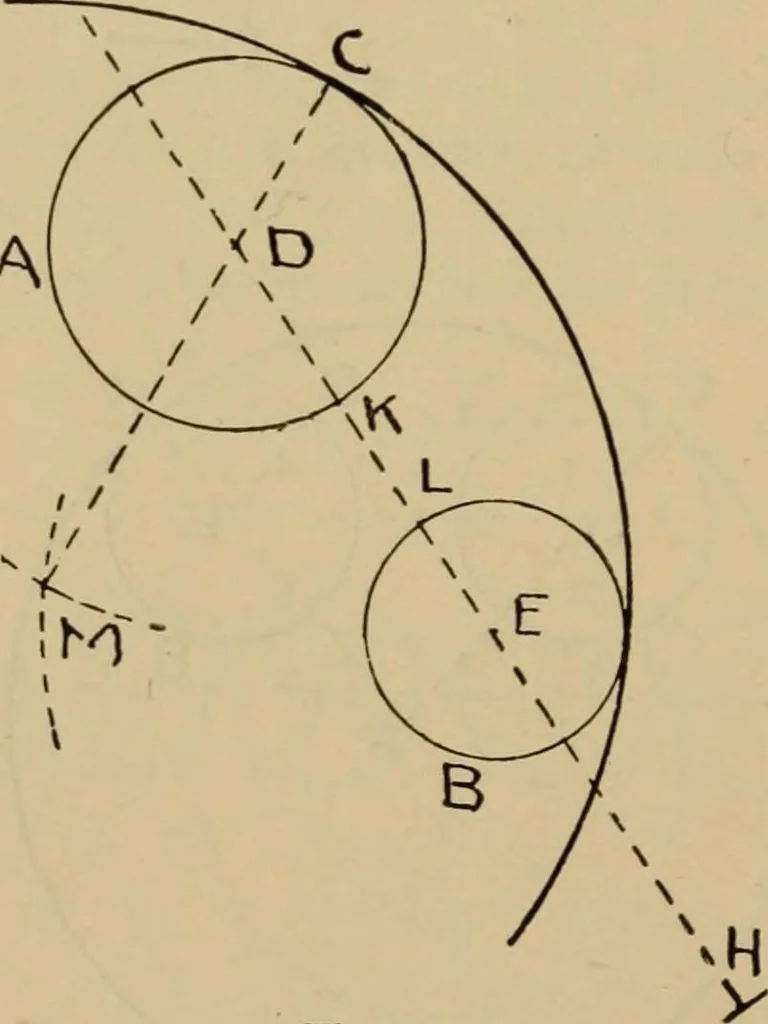

l be tangential to two \ given unequal circles A and B and include them.Note.—The diameters anddistance between the circlesmust not be greater than 2^inches. Find the centres D and E(Prob. 32), and produce a hnethrough them indefinitely inboth directions, cutting thecircles in K and L. From… … Fig. 142. an arc intersecting the other arc at M. From M draw theline MD, and produce it till it meets the circumference of the TANGENTS AND TANGENTIAL ARCS. 67 larger circle in C. With M as centre, and MC as radius, drawthe required arc. 105. To inscribe in a segment of a circle, whose centre is…
