Nisbet, Harry · London, Scott, Greenwood & son; New York, D. Van Nostrand co.; [etc., etc.] · leaf 82

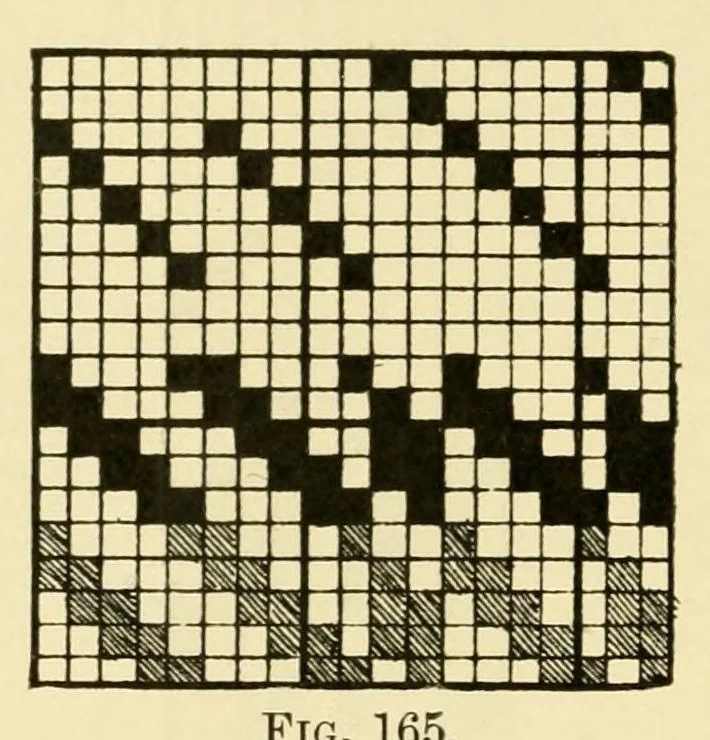

70 GKAMMAK OF TEXTILE DESIGN. broken and counterchanged at irregular intervals of ten, two^ four, and two warp ends. Fig. 166 is based on the six-end four-and-two twill, broken and counterchanged at intervals of eight, four, two, four, two,, and four warp ends. … Fig. 165. Although the foregoing examples illustrate the development- of broken twill weaves having the twill in one direction only^ they serve equally well to demonstrate the formation of those in which the twill is reversed, i.e., produced to the right and left Fig. 166. alternately, or…
Textile design
