United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 246

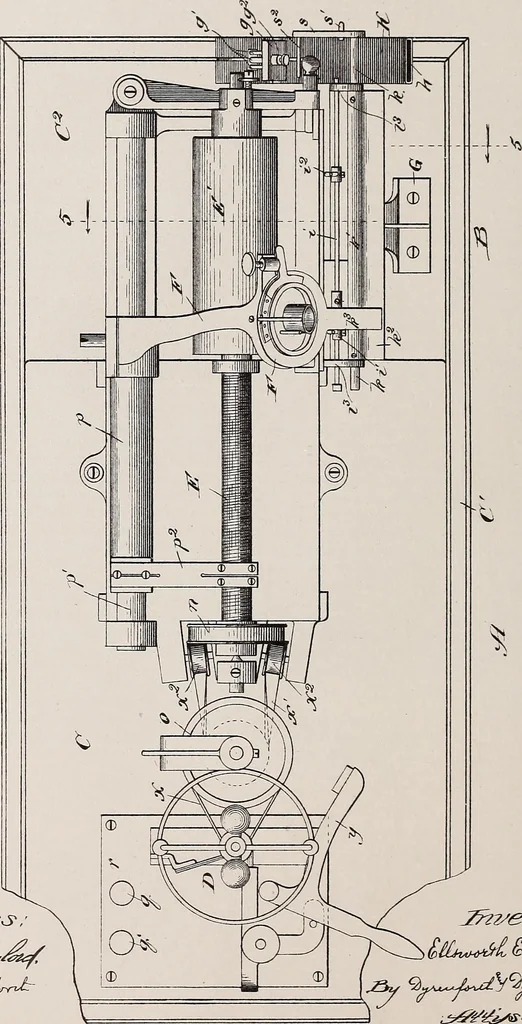

5 PETERS CO, PHOTO-LITHO, WASHINGTON O C. I I I (No Model.) No. 494,807, E. E. FLORA. COIN OPERATED PHONOGRAPH. 3 Sheets—Sheet 2. Patented Apr. 4, 1893.
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 246](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten02unit-246-101.webp)
