United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 396

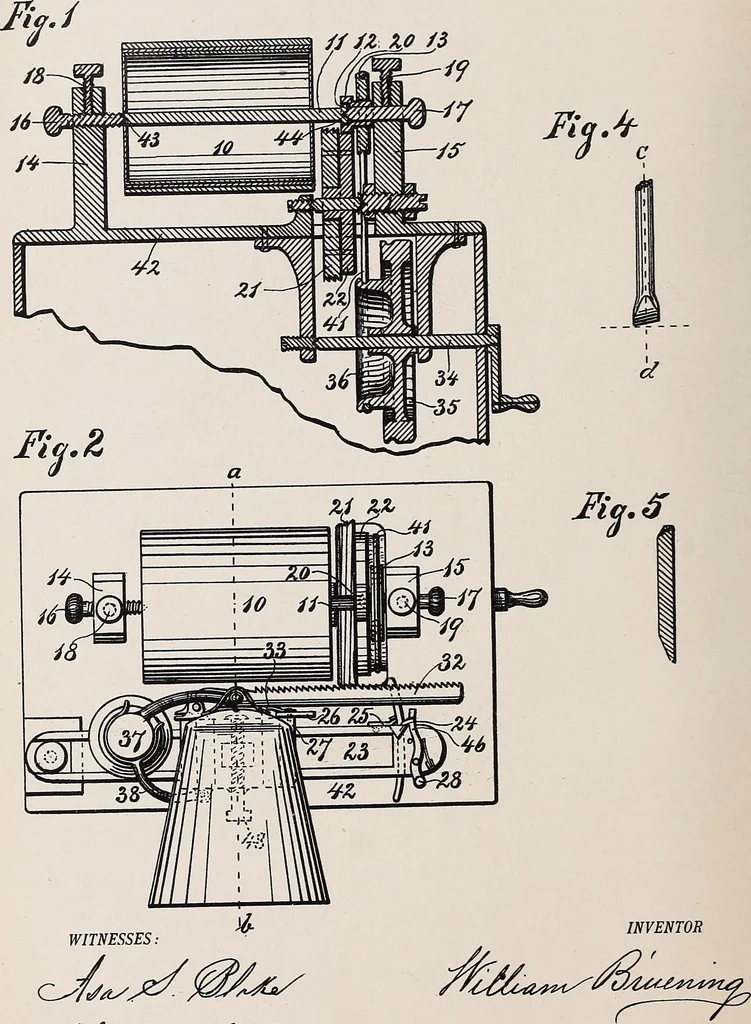

ed. 8. The combination with the diaphragm ofthe stjlus swiveled on the axis of its stem in 120a support carried by said diaphragm, andstops embracing, and limiting the movement of the free end of the stylus, substantially asdescribed. In testimony whereof I have signed this 125specification in the… … WITNESSES (Z^/c/^ity. ■j^.M^ ^tyrCt/ey THE NATIONAL LlTHOQBAPHm* COMPANY,WASHINaTON, D. C. (No Model.) No. 511,402. 2 Sheets—Sheet 2. W. BRUENING. PHONOGRAPH. Patented Dec. 26, 1893, Fiq.b
Phonograph · Patents
