United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 664
n depth representing 25sound waves, substantially as described. 5. A copjof a fiat sound record, which con-sists of a disk of hard rubber having im-pressed upon its face the lines representing therecord, substantially as described, 30 In testimony whereof I have affixed my sig-nature in presence of…
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.

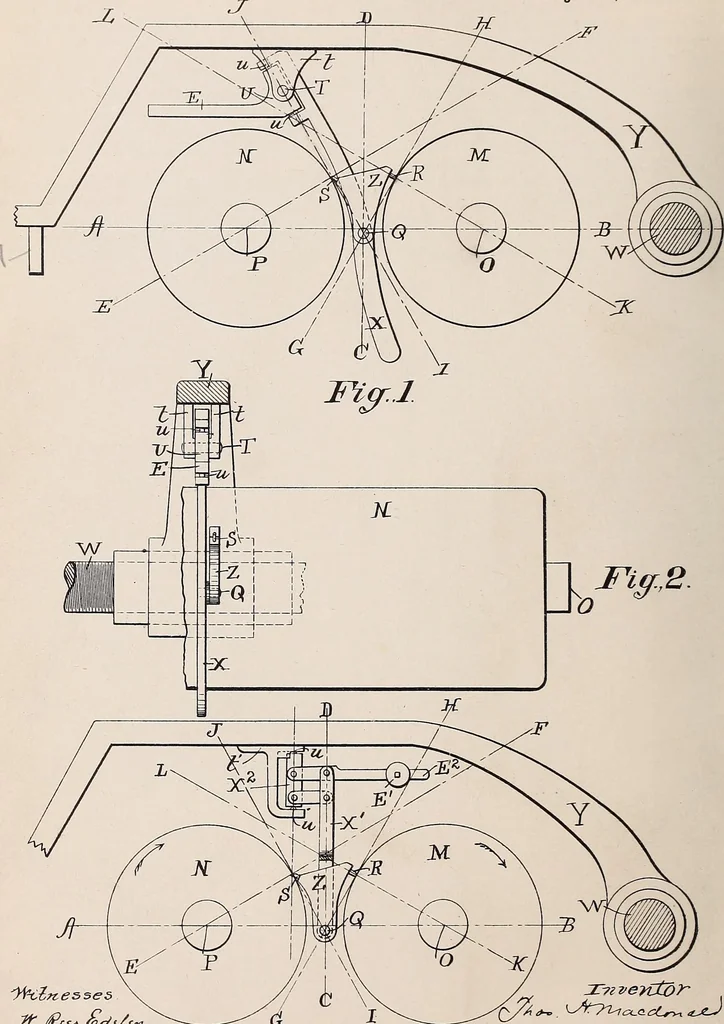

![An illustration from [Graphophone patents], 1878, leaf 664](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten02unit-664-287.webp)
