[Graphophone patents] (1878)
United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 810
![An illustration from [Graphophone patents], 1878, leaf 810](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten04unit-810-0.webp)

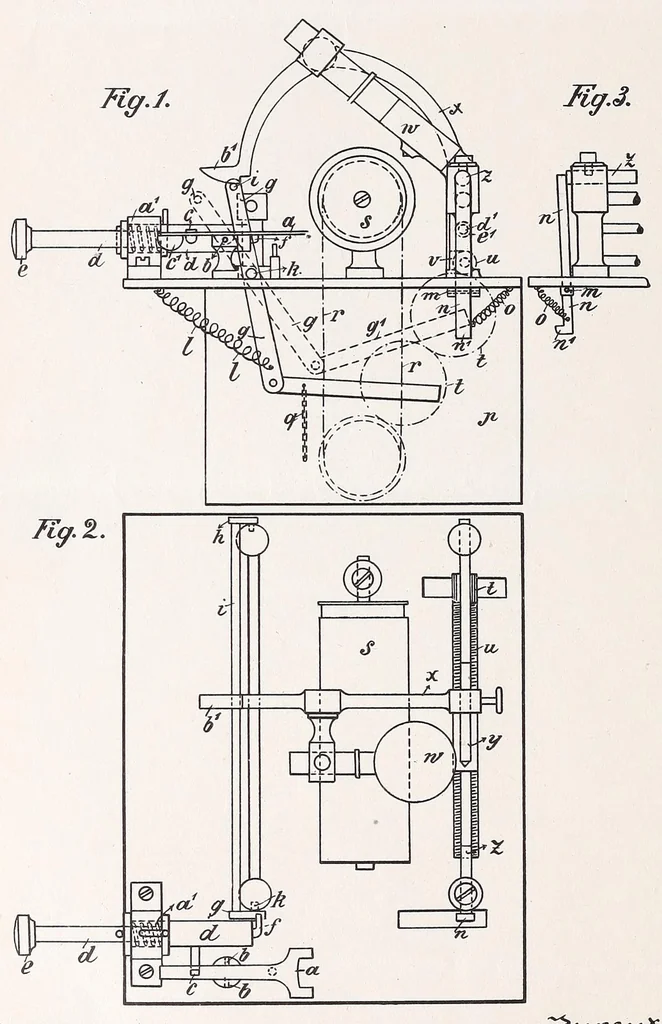

No. 694,705. Patented Mar. 4, 1902. J. WALL. AUTOMATIC RELEASING MECHANISM FOR PHONOGRAPHS, &c. (AppUciLtion filed Nov. 9, 1900.) (No Model.) 2 Sheets— Sheet I. … <p&^ <£\At*Cc>/Ttxv-v-e^v> — 3.LITHO , WASHINGTOrJPhonograph · Patents
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
