United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 361
oseparate boxes placed side by side with asound-tube running longitudinally thereof,each box being provided with a diaphragm,domes secured to said diaphragm, a bridge 45connecting said domes, and a bridge carryinga stylus connected to said first-named bridges,substantially as described. In… … Tiy.%.
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.

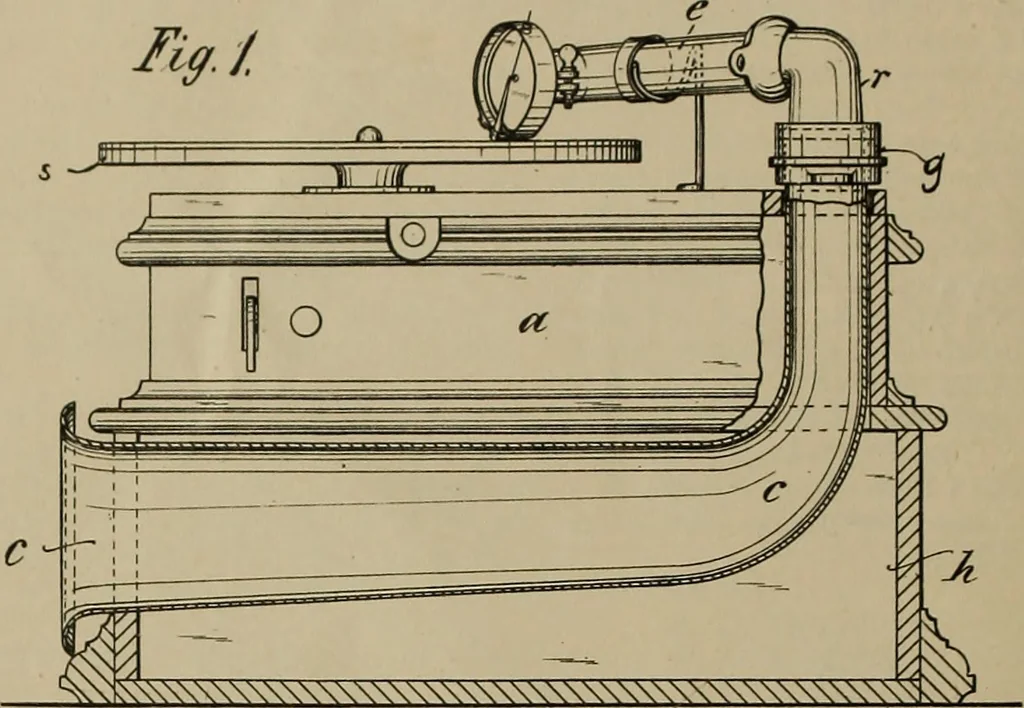

![An illustration from [Graphophone patents], 1878, leaf 361](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten07unit-361-243.webp)
