[Graphophone patents] (1878)
United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 512
![An illustration from [Graphophone patents], 1878, leaf 512](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten09unit-512-0.webp)

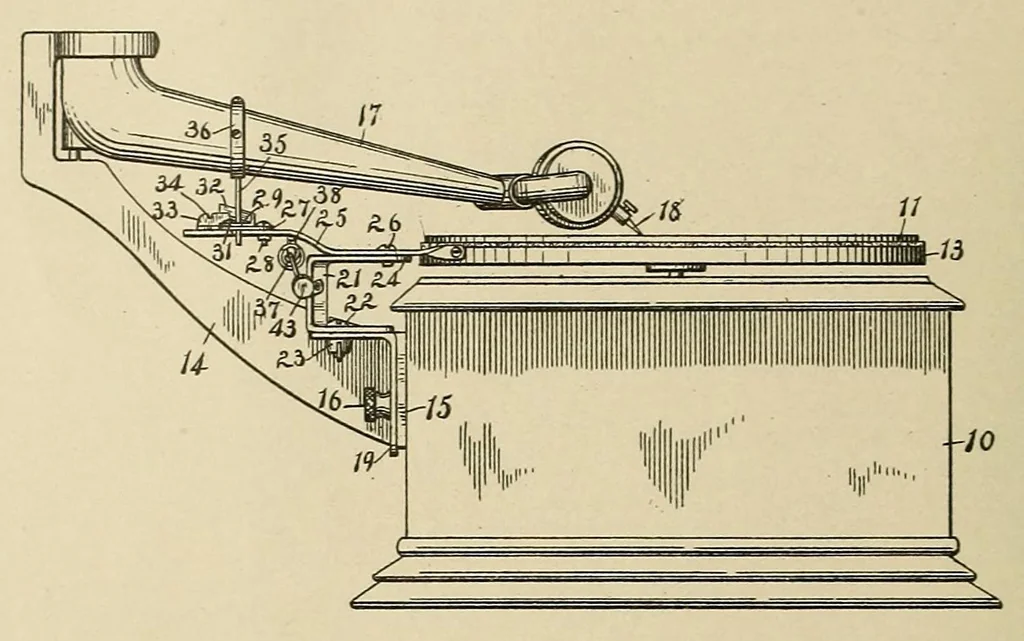

F. SHEPPT. FEEDING DEVICE AND BRAKE FOE SOUND REPEODUCING MACHINES. APPLICATION PILED MAT 27, 1907. 929,253 . Patented July 27, 1909. 2 SHEETS-SHEET 1. … -Fifi.Z, ?■ NVENTIDR Witnesses: ll«Mw t OlUKlM CO. nVTO-UTMXXUnCW w**w«gto*. a cPhonograph · Patents
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
