United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 161

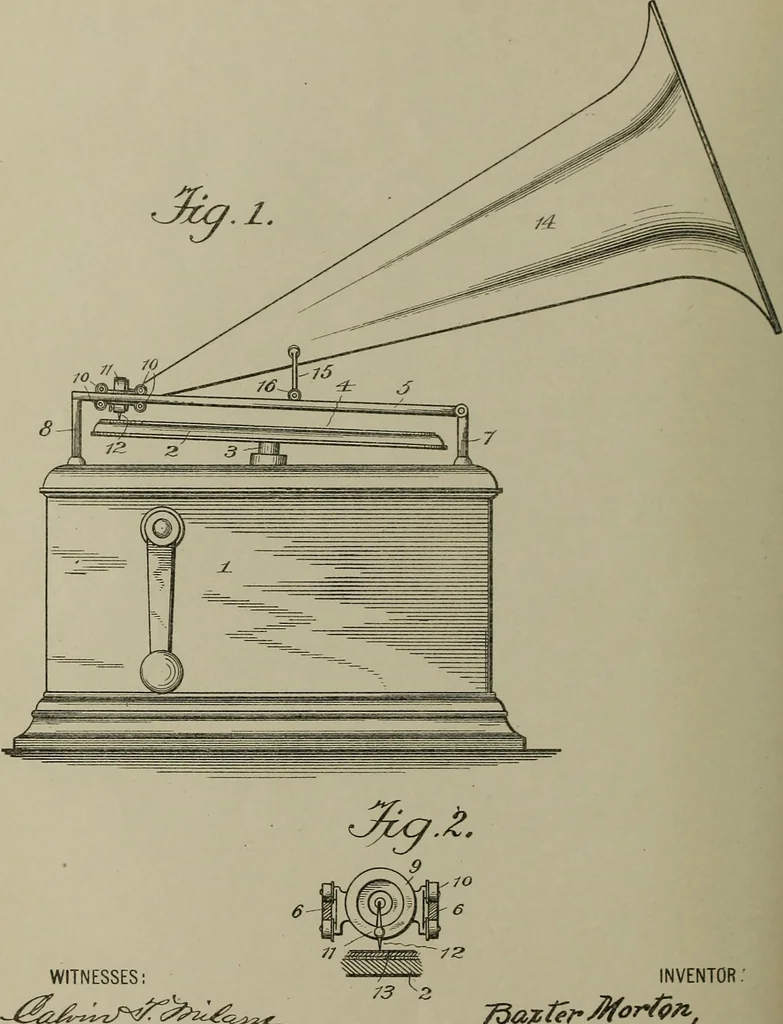

mounted arm on said reproducerfor holding the needle, and means interposedbetween said arm and said member whereby 85the rocking of the latter to engage saidworm shall actuate said arm to retract theneedle, substantially as described. In testimonj whereof I have signed myname to this specification… … -<:2^2<Z5^_^ ^ INVENTOR 73 2 <P<U/i^j!^ d.J^TVtjC^ BY *^ ATTORNEYS. UNITED STATES PATENT OFFICE. BAXTER MORTON, OF NEW YORK, N. Y., ASSIGNOR, BY MESNE ASSIGNMENTS, TO HAW-THORNE & SHEBLE MANUFACTURING COMPANY, OF PHILADELPHIA, PENNSYL-VANIA, A CORPORATION OF PENNSYLVANIA.…
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 161](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten10unit-161-126.webp)
