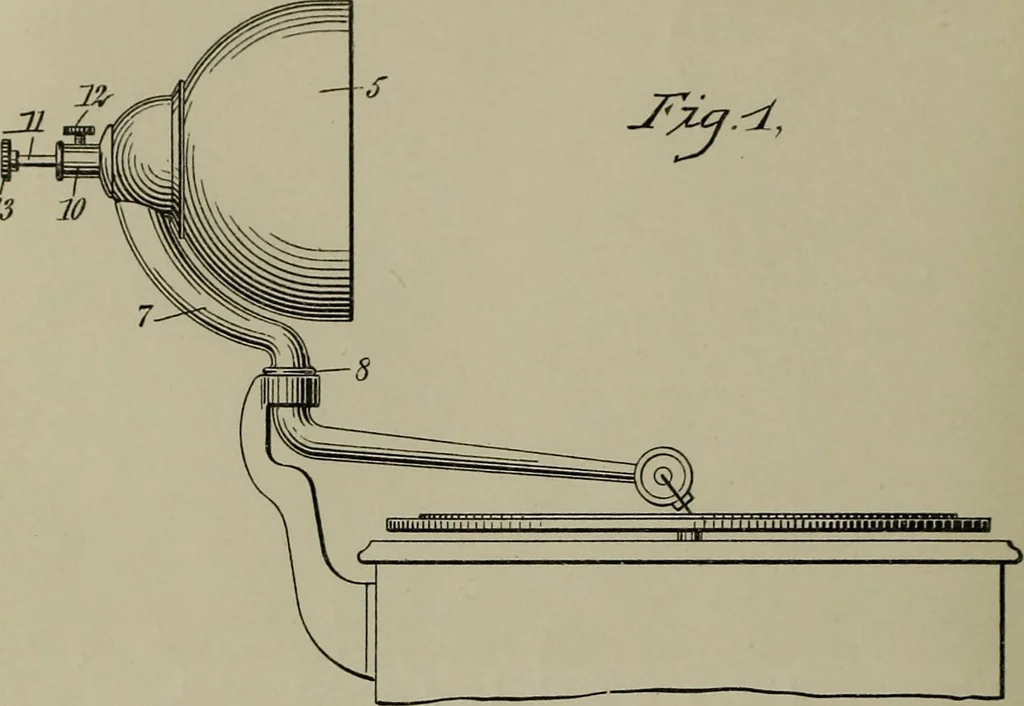

United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 367
its extreme pointtoward the table, and a brake shoe carryingarm pivoted beneath the table and adaptedto be engaged by said finger and turned to 25bring the brake shoe into contact with therotatable table when the finger is engagedby the lug thereon. In testimony whereof I affix my signaturein…
Phonograph · Patents
