United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 67
the same size asthe delivery end of said amplifier and hav- ^ing a restricted passage between the spacewithin said cabinet surrounding said ampli-fier and said opening, and means for closing 80said opening. In witness whereof, I have hereunto setmy hand this 11th day of January, 1906. ELDRIDGE K.… … ffz^ieSSes: 2 ^2 ^7
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.

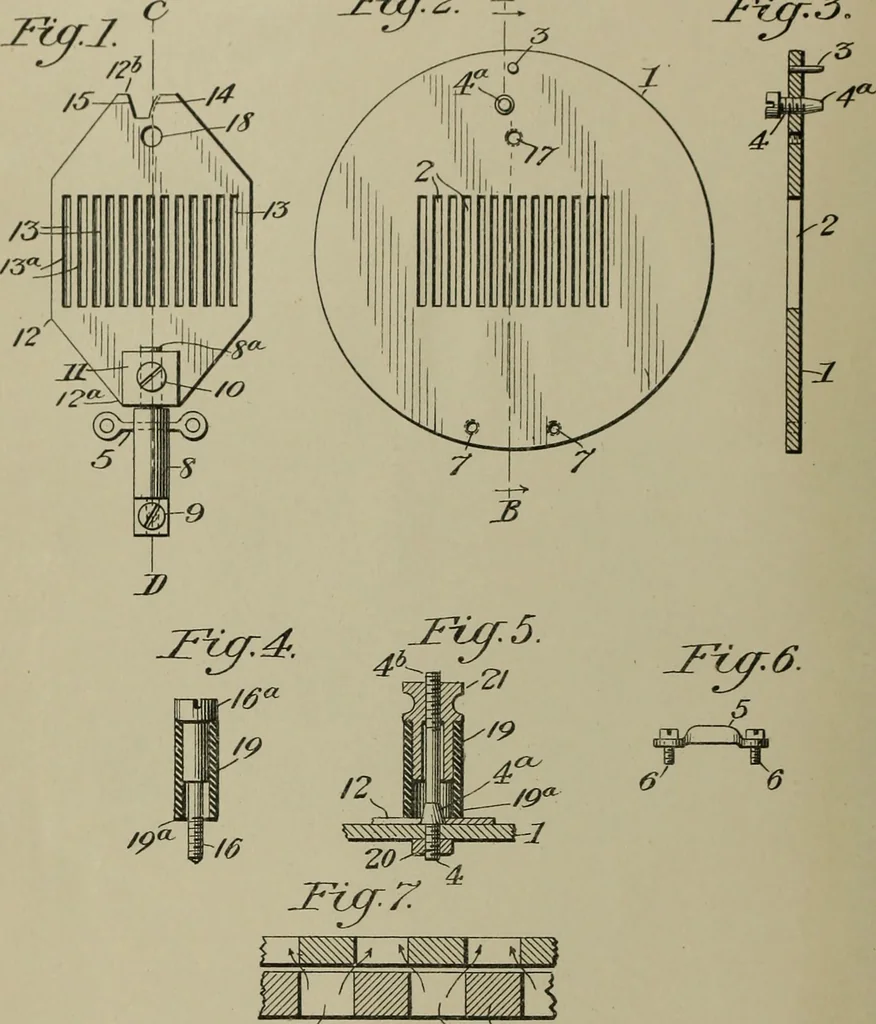

![An illustration from [Graphophone patents], 1878, leaf 67](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten10unit-67-70.webp)
