[Graphophone patents] (1878)
United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 116
![An illustration from [Graphophone patents], 1878, leaf 116](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten11unit-116-0.webp)

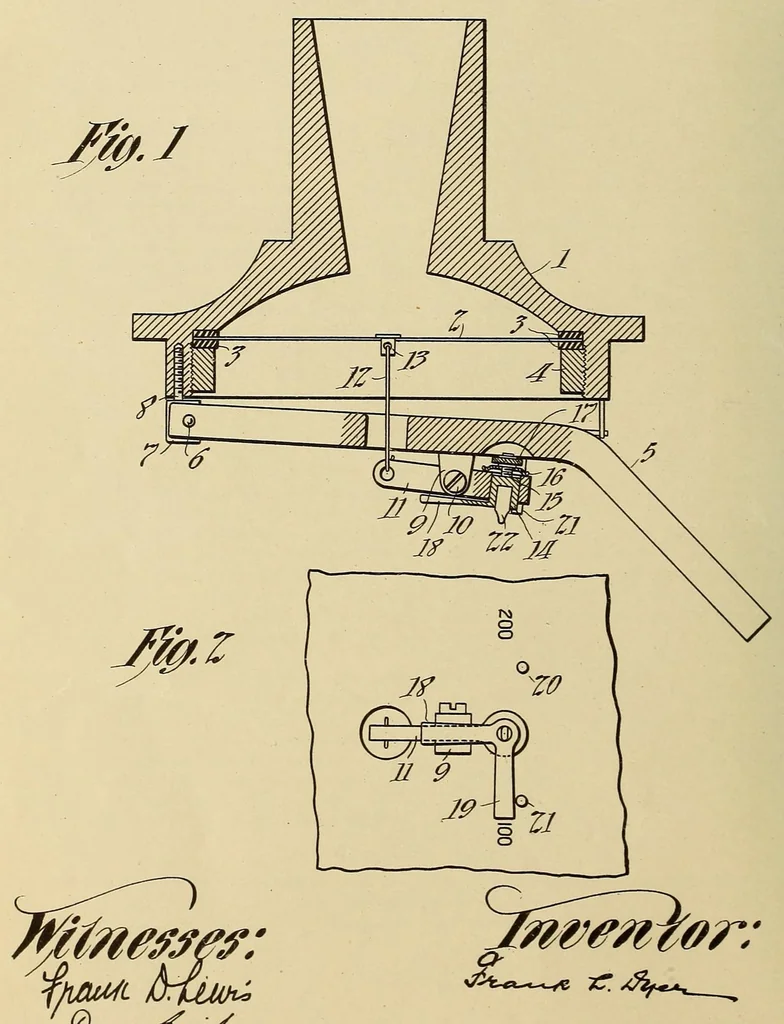

F. L. DYER. PHONOGRAPH REPRODUCER. APPLIOATIOH TILED MAS. 18, 1909. 985,736. Patented Feb. 28, 1911. … ; PETCRS CO.. WASHINGTON,Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
