[Graphophone patents] (1878)
United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 400
![An illustration from [Graphophone patents], 1878, leaf 400](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten11unit-400-0.webp)

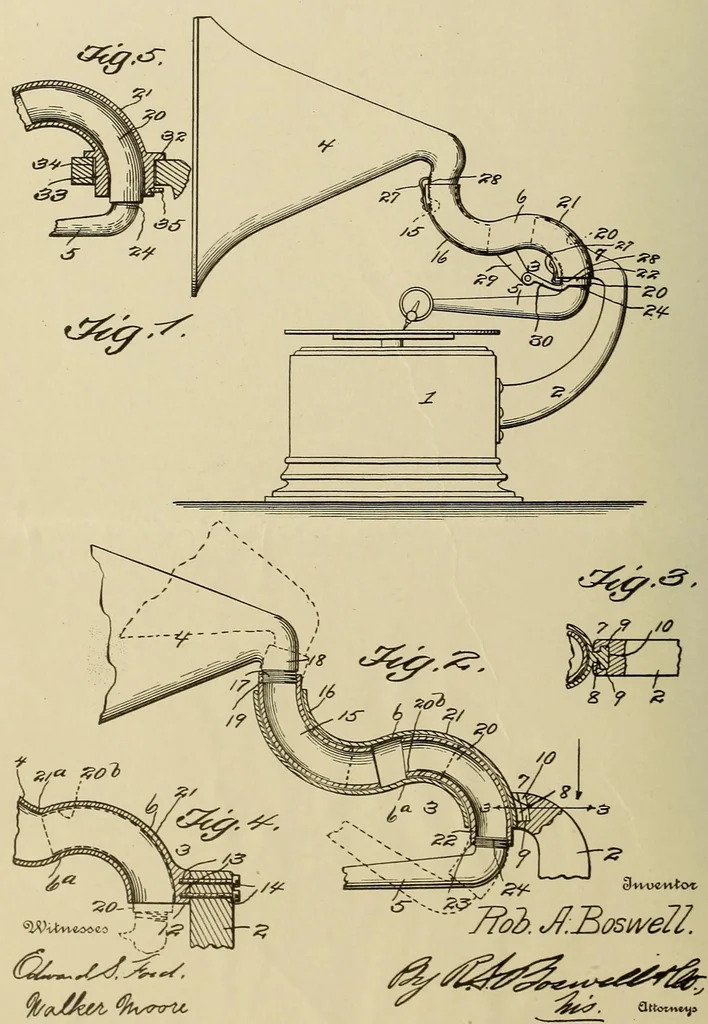

R. A. BOSWELL. AMPLIFYING HOBN FOE TALKING MACHINES. APPLICATION FILED MAY 11, 1910. 999,954. Patented Aug. 8, 1911.Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
