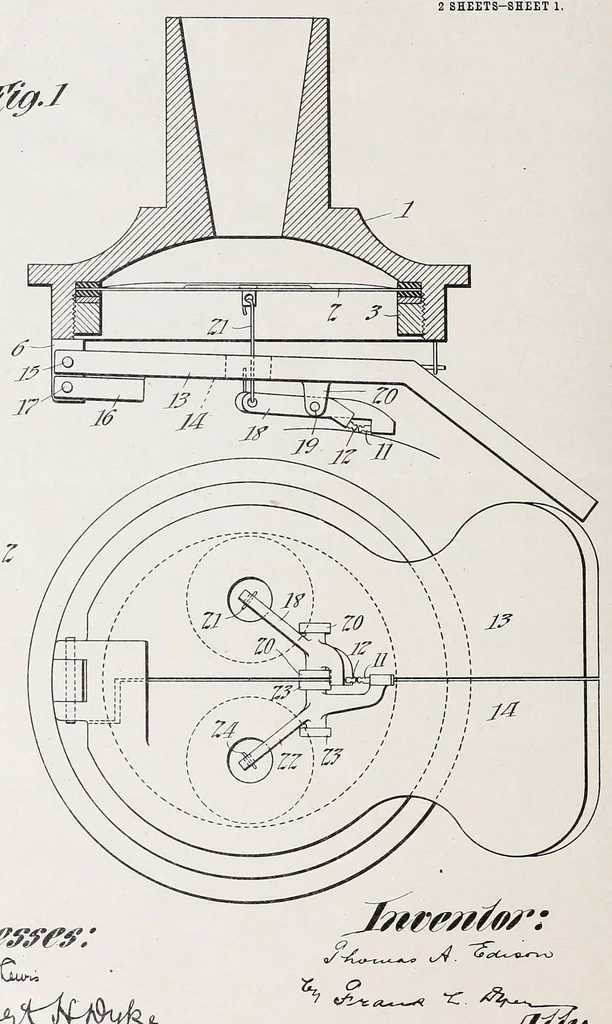

T. A. EDISON. PHONOGRAPH EEPEODDCER. APPLICATION PILED JUNE 11, 1908. Patented Dec. 3, 1912. 1,046,159. 2 SHEETS-SHEET 1. … Mm COLUMBIA PLANOGRAPH CO., WASHINGTON, D. C.
