United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 1146

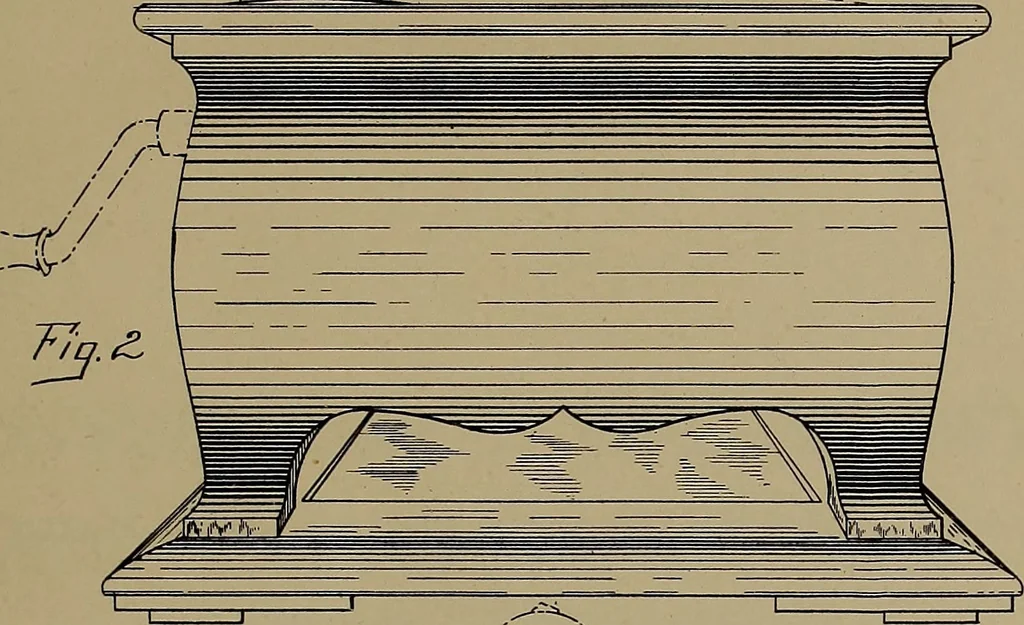

t perspective view; andFig. 2 is a side view of my improved phono-graph cabinet design.I claim: The ornamental design for a phonographcabinet as shown. ALBEET W. MENNS.Witnesses: Clyde L. Rogers,Louise A. Jordan. Copies of this patent may be obtained for five cents each, by addressing the… … \ if G) w \ Ty —\-
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
