[Graphophone patents] (1878)
United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 1195
![An illustration from [Graphophone patents], 1878, leaf 1195](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten15unit-1195-611.webp)

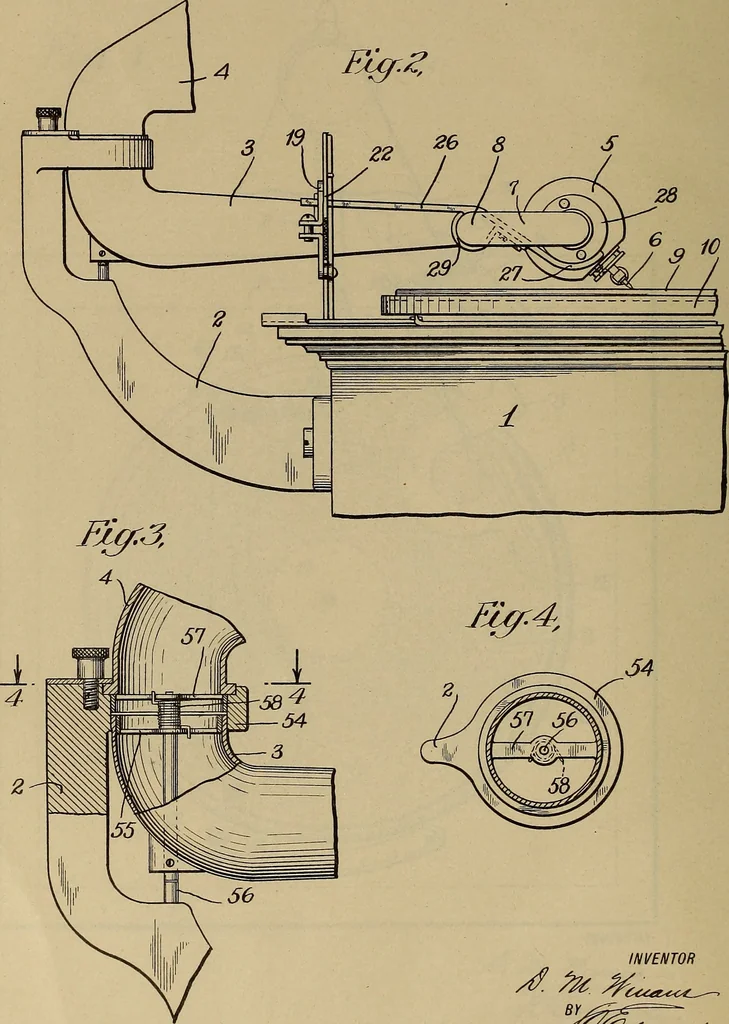

ATTORNEY rOLUMBIA PLANOQRAPH CO., WASHINGTON, D. C. 1,165,927. D. M. WINANS. TALKING MACHINE WITH REPEAT ATTACHMENT. APPLICATION FILED JULY 17, 1915. Patented Dec. 28,1915. 3 SHEETS-SHEET 2. … J- fa-^ INVENTORPhonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
