[Graphophone patents] (1878)
United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 688
![An illustration from [Graphophone patents], 1878, leaf 688](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten17unit-688-0.webp)

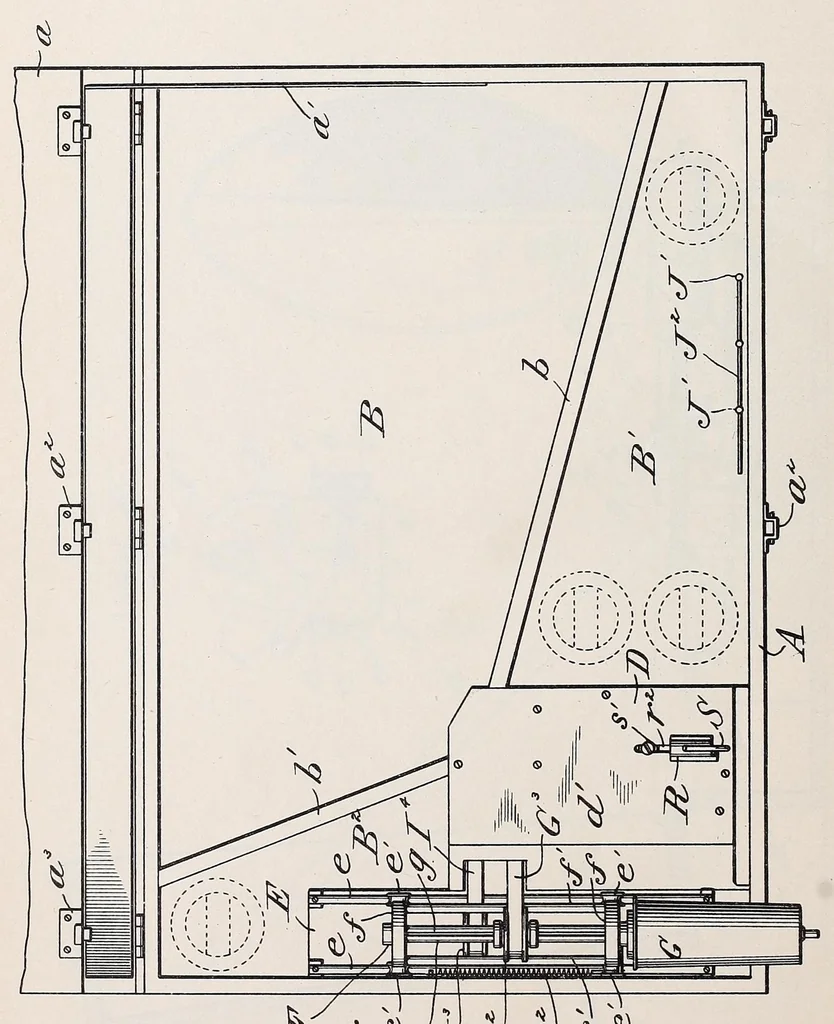

E. WALKER. PHONOGRAPH. APPLICATION FILED SEPT.25, 1907. RENEWED MAR. 30, 1916. Patented Nov. 7, 1916. 1,203,667. 5 SHEETS-SHEET 3. … NVvU VV WITNESSES INVENTOR JEchirirv ~Wcil7c&r BY " ATTORNEYSPhonograph · Patents
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
