[Graphophone patents] (1878)
United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 902
![An illustration from [Graphophone patents], 1878, leaf 902](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten19unit-902-0.webp)

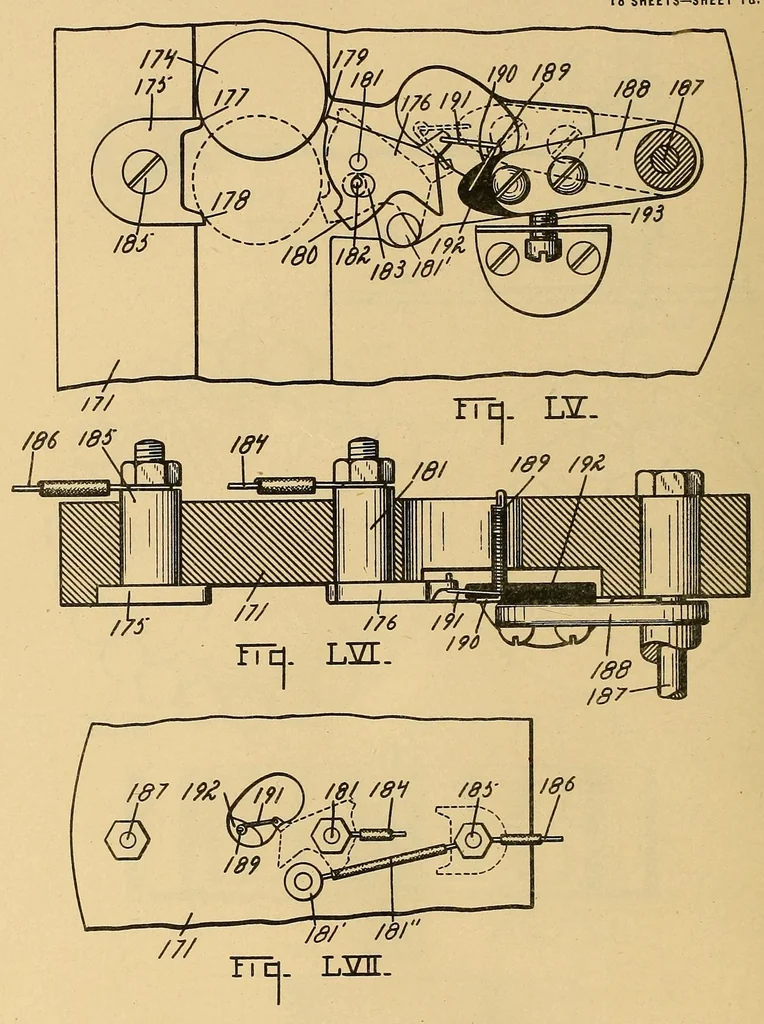

C. C. SHI6LEY. PHONOGRAPH. APPLICATION FILED NOV. 10, 1916. Patented Nov. 20, 1917. 1,247,587 18 SHEETS-SHEET 18. … INVENTOR. Cyrus C. S/7/g/ey WITNESSES:Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
