[Graphophone patents] (1878)

United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 681

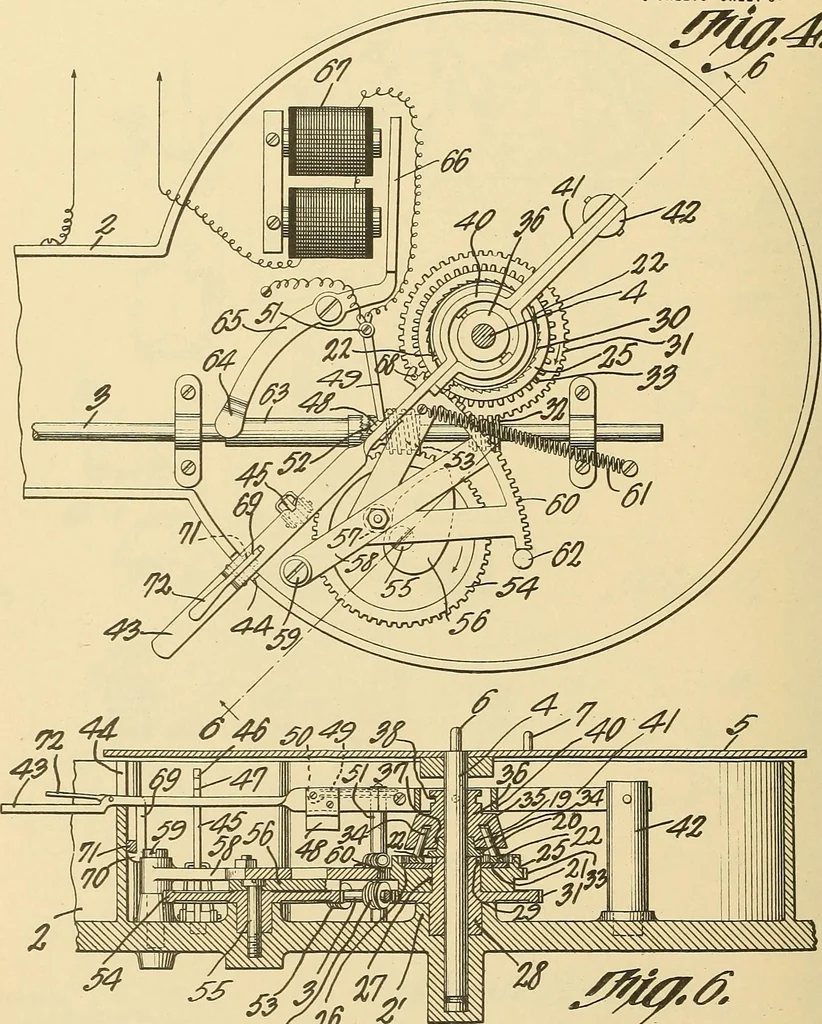

An illustration from [Graphophone patents], 1878, leaf 681
Attorneys C. W. EBELING.VARIABLE SPEED MECHANISM FOR SOUND AND PICTURE REPRODUCING MECHANISM. APPLICATION FILED OCT. 30, 1913. RENEWED JAN. 19, 1918. 1,261,796. Patented Apr. 9,1918. 5 SHEETS—SHEET 3. es4- … M ,s 2 m J%Z& Witnesses

Phonograph · Patents

Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
