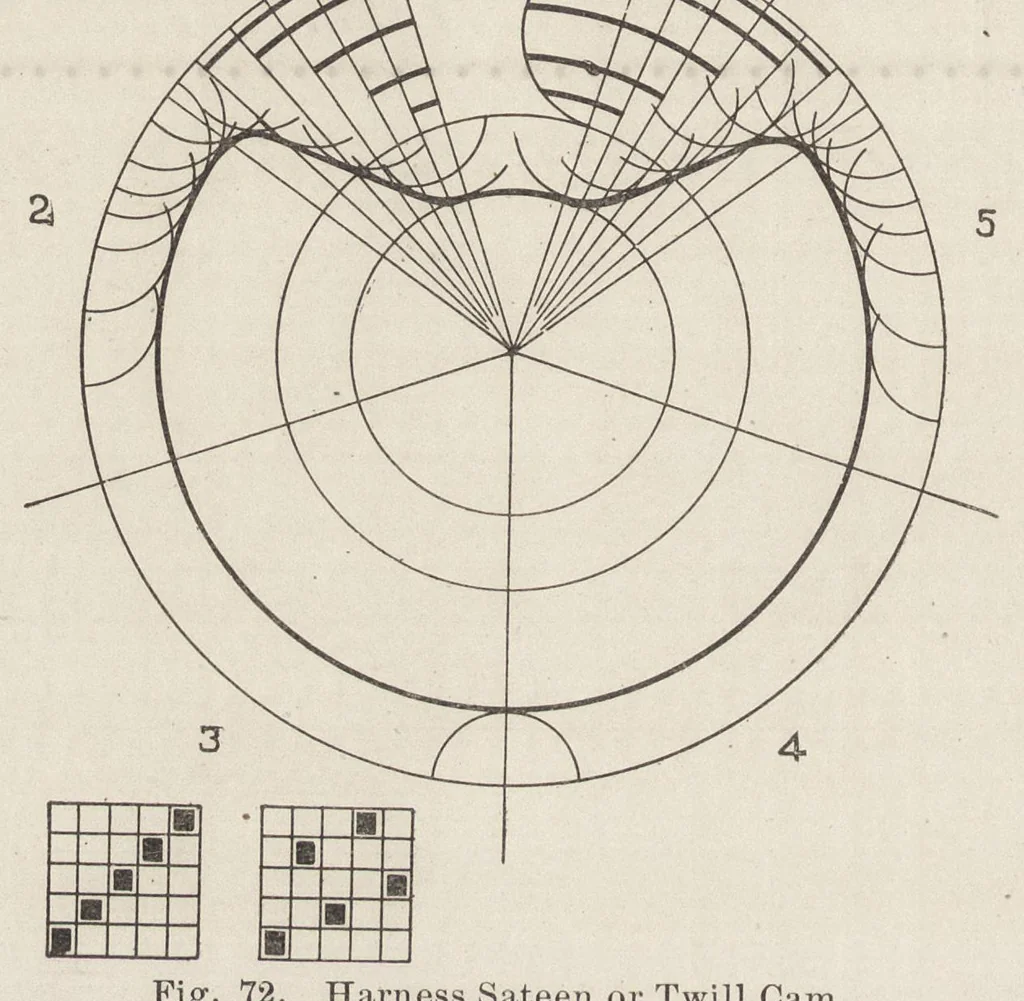

o and one-half times less teeth than the gear on the shedding cam shaft, that is, for a five end satin or twill cloth. (See Tig. 72.) If there is a gear of 70 teeth on the shedding cams, and a gear of 35 teeth, one-half the size, is placed on the pick cam shaft, the cams would travel at the rate of… … Fig. 72. Harness Sateen or Twill Cam. Example. There is a 30 driving gear on the crank shaft, im- parting motion to a 60 gear on the pick cam shaft; a 28 gear on this shaft drives a 70 on the shedding cam shaft. If th ere is a four-pick pattern, what number of teeth should the gear contain using…
