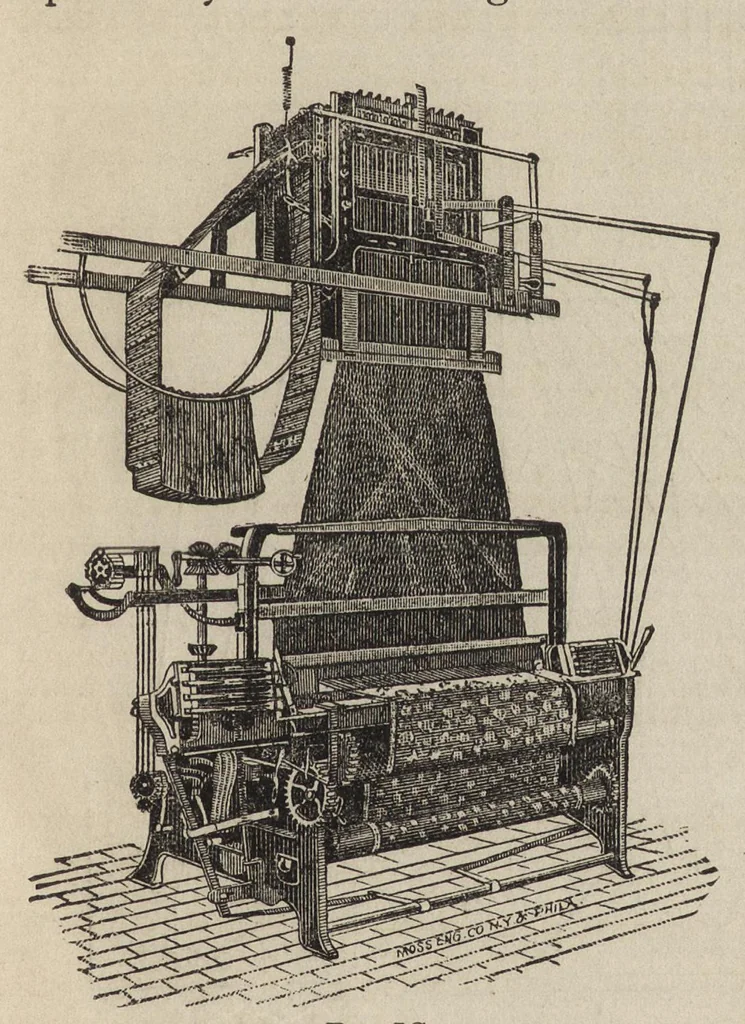

ans of the double- acting lever. This machine has the set of hooks for each griffe-bar pro- tected by a plate of sheet iron, thus steadying the hooks in their motion, and enablino- smaller crooks to be used for the latter. Fig. IC. represents a double lift single cylinder Jacquard machine Fig.… … Fig. ic. Speed is attained, which is the purpose of the machine. For example: 140 picks per minute (speed of loom) only requires 70 picks per minute from each part of the double lift double cylinder. In Fig. cm. this is clearly illustrated. It shows two 12-row machines (^and F) combined, thus…
