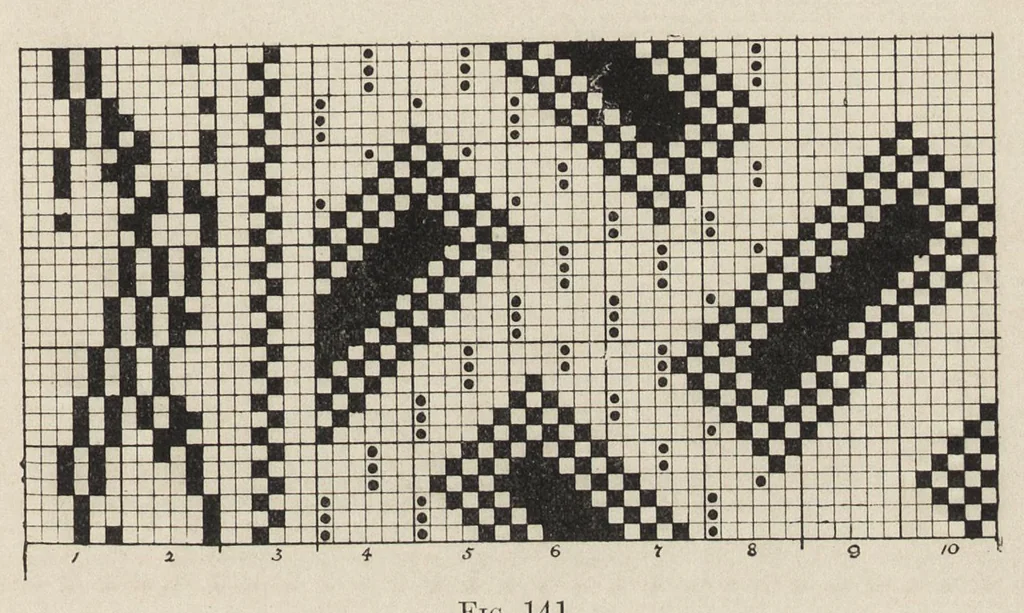

the cards hanging over the side of the loom, as for the ‘London tie.’ This method of mounting enables the pattern to be designed for 300 hooks and painted on the design paper independently of the gauze, which can be filled in afterwards. Fig. 141 is an example of designing in this manner, using 6… … Fie. 141 gauze, 6 checks, or 2 splitfuls of gauze to the design; there would be 10 doups required for the 5 designs in the repeat of the pattern, and for these 10 checks are used of designs Nos. 1 and 2. The rising of the back leash of the harness to form the crossing is shown by the dots marked on…
Jacquard weaving
