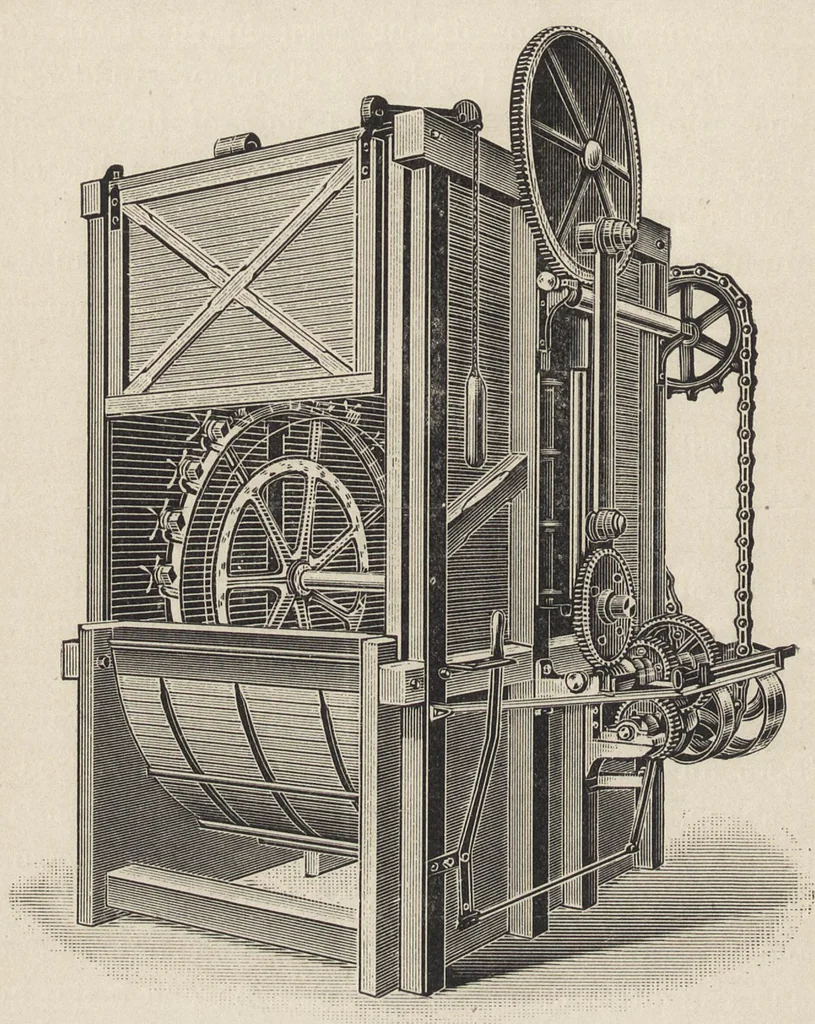

48 THE DYEING OF WOOL FABEICS. in figure 15, which shows the latest form. It consists of a half-cyhndrical dye-vat built of wood. On a central axis is built two discs or rod carriers, which can revolve in the dye -vat, the revolution being given by suitable gearing which is shown at the side of the… … Fig. 15. — Klauder-Weldon Dyeing Machine. edge of the discs are chps for carrying rods on which one end of the hanks of yarn is hung, while the other end is placed on a similar rod carrier near the axle. The revolution of the discs carries the yarn through the dye-liquor contained in the lower…
