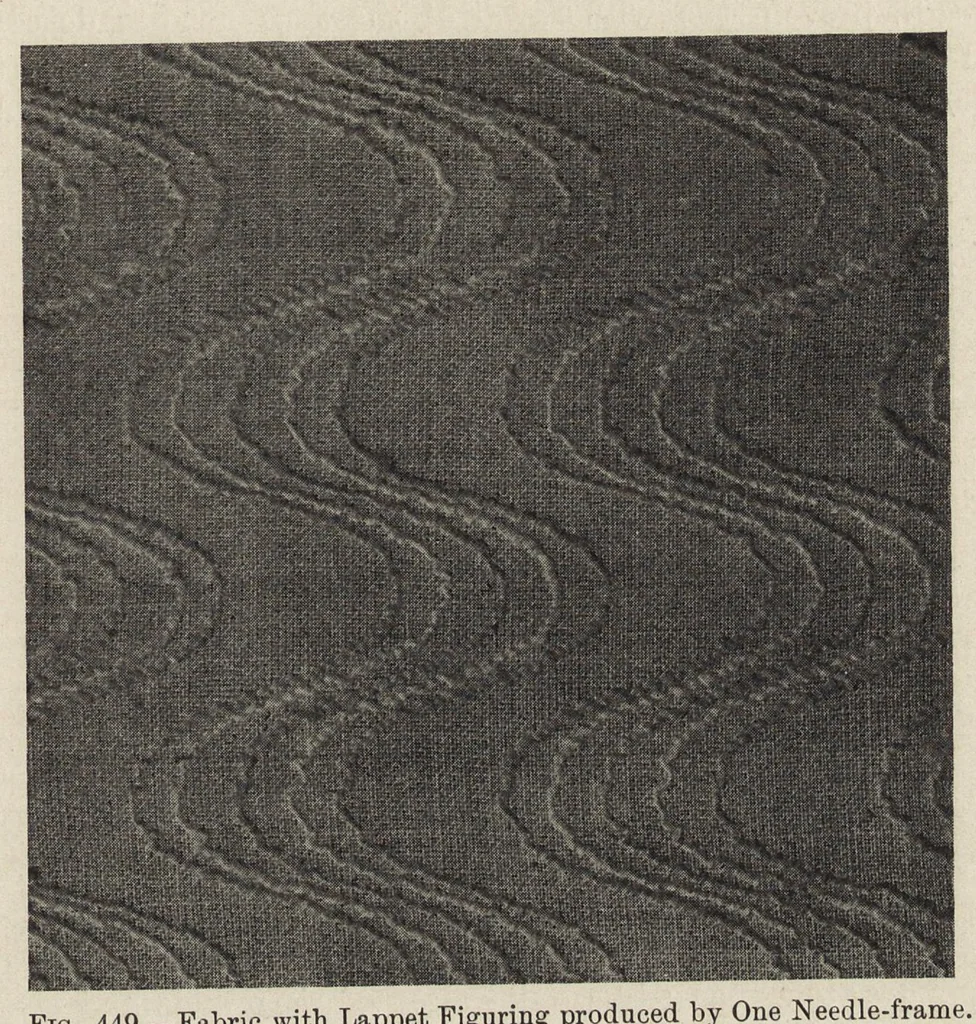

247 TISSUE, LAPPET AND SWIVEL FIGURING. cloth, and of beating up picks of weft. The pin-stave C is a stave containing a number of sharply-pointed pins, placed ver- tically at intervals of about an inch to an inch and a [quarter. This is placed immediately behind the rear edge of the shuttle… … Fig. 449.— Fabric with Lappet Figuring produced by One Needle-frame. sheds, after which it disappears below warp ends and cloth, as the sley advances to beat up the picks of weft. The needle-frames B, B1 are narrow staves, each containing a series of sharply-pointed needles placed vertically, and…
