American Correspondence School of Textiles · New Bedford, Mass. : American Correspondence School of Textiles · leaf 239

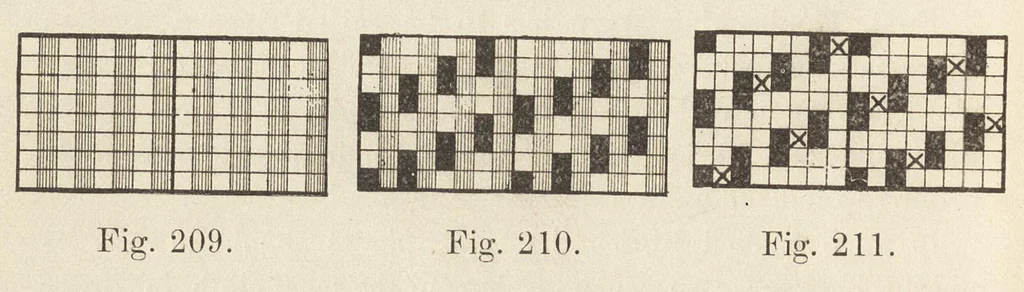

214 DESIGNING. PART VII. 962. In order that the student may thoroughly understand the method of designing warp backed fabrics, an illustration will be given here and each step in the process worked out separately, finally showing the complete weave. … 963. Suppose, for example, that it is desired to back the cassimere twill with warp, using the 8 harness satin weave on the back of the cloth, the design to be arranged one of face warp and one of back. 964. As the back weave in this case will require 8 ends it will be necessary to show two repeats…
Textile design -- Study and teaching · Weaving -- Patterns
