Christophori Scheiner, e Societate Iesu Germano-Sueui, Pantographice, seu, Ars delineandi res quaslibet per parallelogrammum lineare seu cauum, mechanicum, mobile : libellis duobus explicata & demonstrationibus geometricis illustrata, quorum prior epipedographicen, siue planorum, posterior stereographicen, seu solidorum aspectabilium viuam imitationem atque proiectionem edocet (1631)
Scheiner, Christoph, 1575-1650 · Romae : Ex typographia Ludouici Grignani · leaf 44

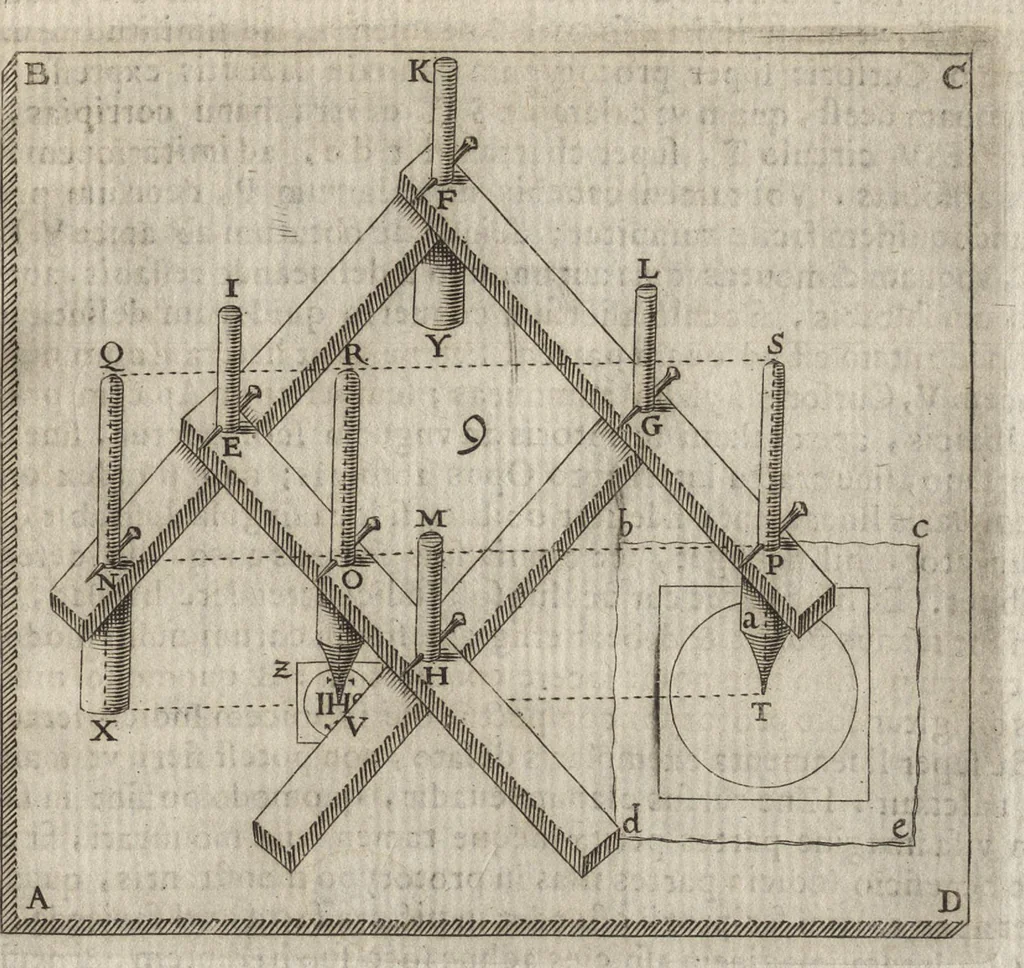

PARS I. CAP. VI. … riundam permitto . In pra?fente igitur 9. fchemate ABC D,fpedanduta habes Inftrumentum graphicum EFGH, clauis quattuor E I , FK, GL, HM, apte atque adeo parallelos connexum : eft enim linea EF, linea; G H , aqualis & parallela ; fic linea F G, linea? H E parallela & a?qua!is. fune deinde tres ftyli…
Pantograph · Geometrical drawing · Pantograph -- Early works to 1800 · Geometrical drawing -- Early works to 1800
