The carpenter's assistant : containing a succinct account of Egyptian, Grecian and Roman architecture. Also, a description of the Tuscan, Doric, Ionic, Corinthian and composite orders; together with specifications, practical rules and tables for carpenters, and a glossary of architectural terms. Embellished with upwards of 200 plates of plans, elevations, details, and practical stair-building (1854)
Brown, William, architect, Joy, Lewis E · Boston : Published by Edward Livermore · leaf 125

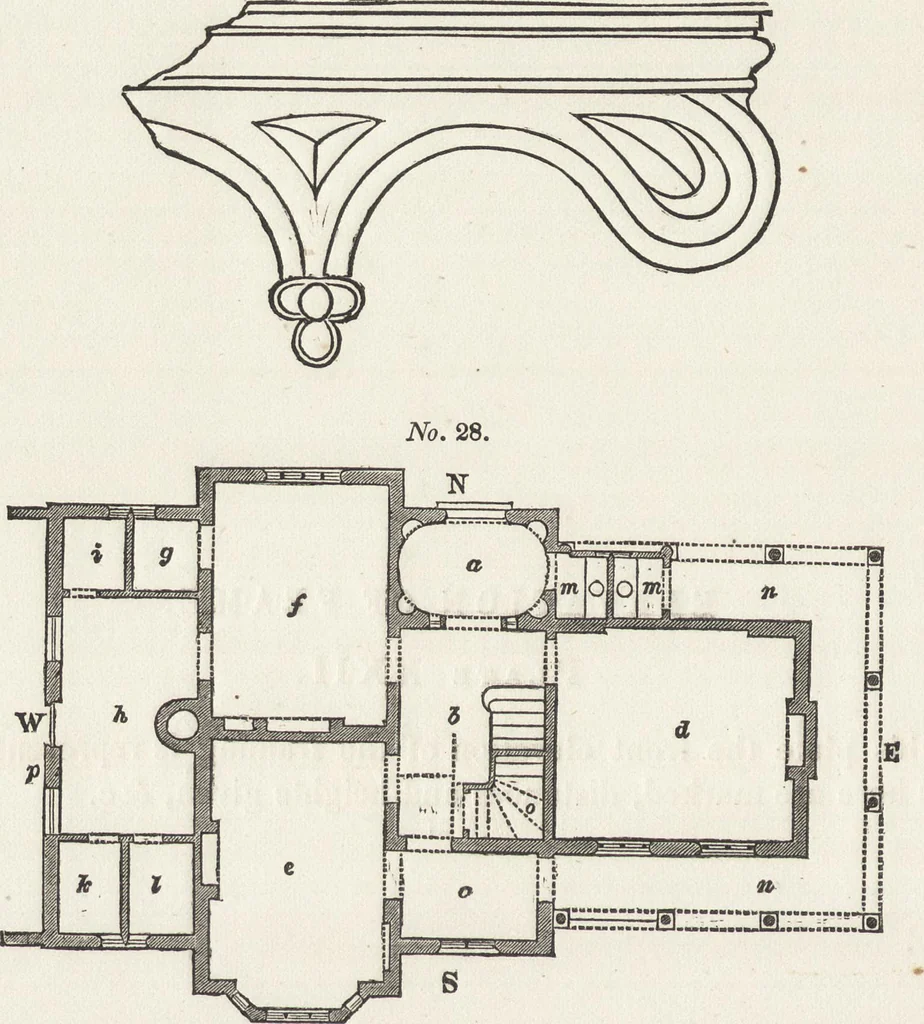

ELEVATION OF FEAME.Plate XXII. On this plate the front elevation of the framing is represented. Thetimbers here are marked, distances and heights given, &c. 61 62 JVb. 27. … J L 10 20 The No. 28 shows the ground-plan, in which (a) is the principal entranceporch, which is to be finished with a covered roof, and to have Gothic nichesin the angles for statues, or vases for flowers. From this we pass to the hall and staircase, (b), by a Venetian door, theupper part of…
Carpentry · Architecture
