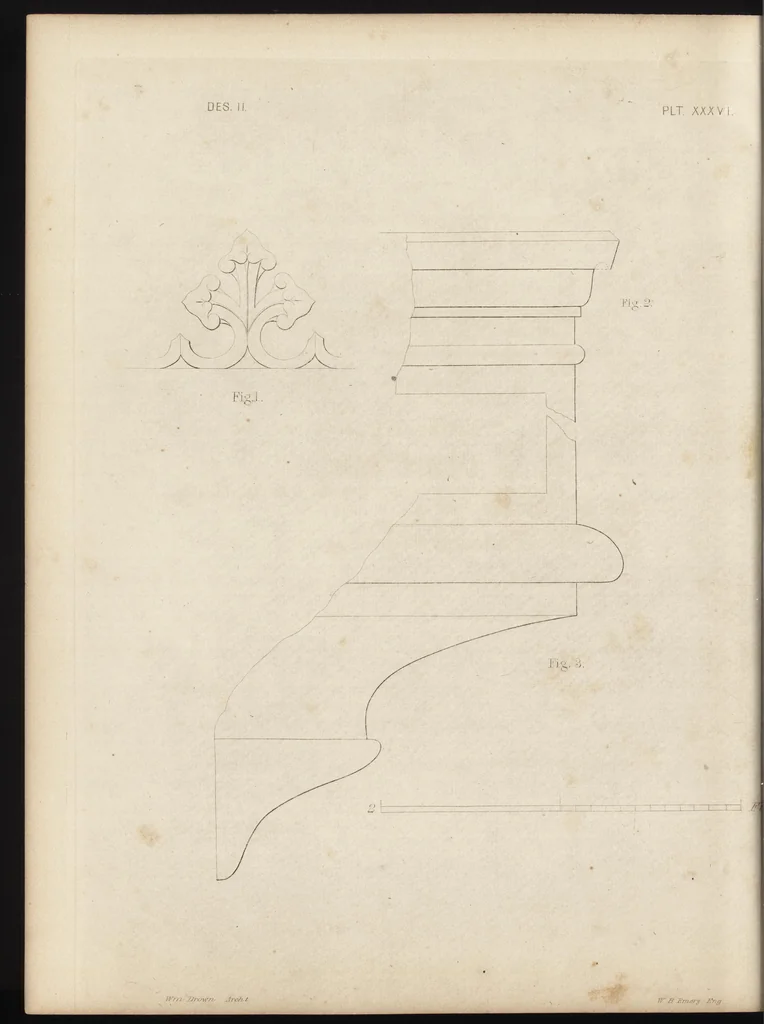

DETAILS. Plate XXXVI. Fig. 1. —The ornament surmounting the cornice of the Oriel windowseen in the front elevation, half size. Fig. 2. —The cornice of the Oriel window.Fig. 3. — The pedestal or base of the same. 12 89 90 six feet above it. When filled, the boiler regulates its supply of water…
