Painters' oils, colours, and varnishes : with numerous engravings and diagrams (1905)
Hasluck, Paul N. (Paul Nooncree), 1854-1931 · Philadelphia : David McKay · leaf 130

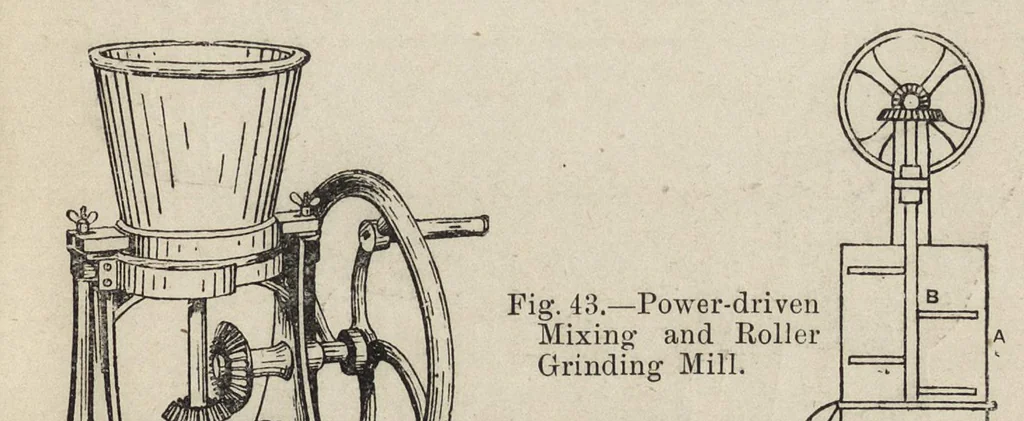

PAINT GRINDING AND MIXING. 129 vessel A (Fig. 43), having a shaft in the centre, attached to which are a series of arms or knives B; the shaft is caused to revolve, and the arms or knives then serve as beaters, thoroughly mixing and amalgamating any materials put into the mill. After agitation for… … Fig. 42.—Hand-power Cone Mill. second rollers c ; in these rollers the grinding begins, and the oil and colour are, so to speak, pressed closer in con- | tact as they become more finely divided ; the paint is then ' drawn over to the third roller by adhesion, is further ' ground, and is finally…
Paint · Varnish and varnishing
