A practical handbook of dyeing and calico-printing. With eleven page-plates, forty-seven specimens of dyed and printed fabrics, and thirty-eight woodcuts (1874)
Crookes, William, 1832-1919 · London, Longmans, Green · leaf 70

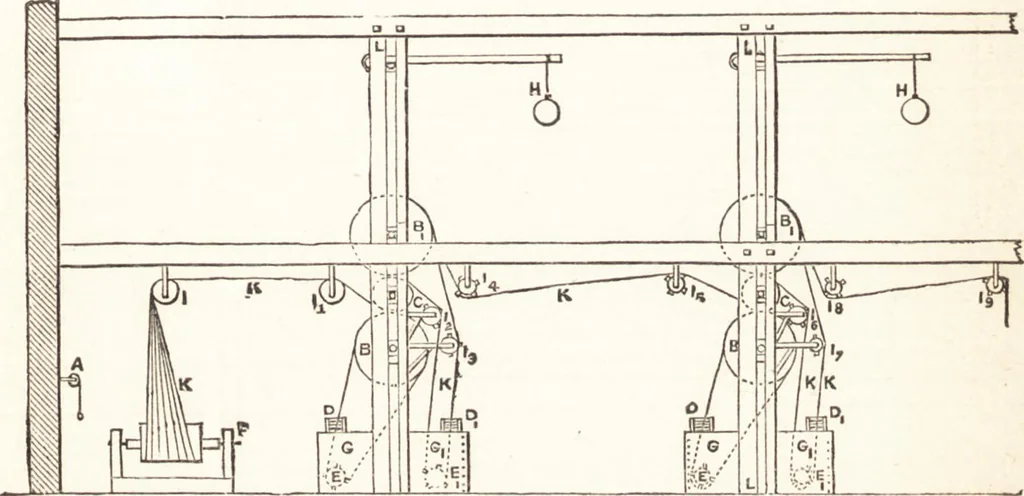

, many improvements havebeen suggested upon the plan pursued originally by Bentley, but as theprinciple is undoubtedly due to him, we shall describe the apparatus as itfirst appears in his patent. Fig. 3 is an end view of two calenders, each having two larger rollers,B and B, a smaller driving… … At f is a series of rollers, upon which the batches of goods are placed. Thecalender cheeks are made fast at the feet, at the middle, and to the top of thebuilding, having levers and weights, H, to give pressure to the calender bowls.Near the end walls of the building are two rollers, one of which…
Dyes and dyeing · Calico-printing
