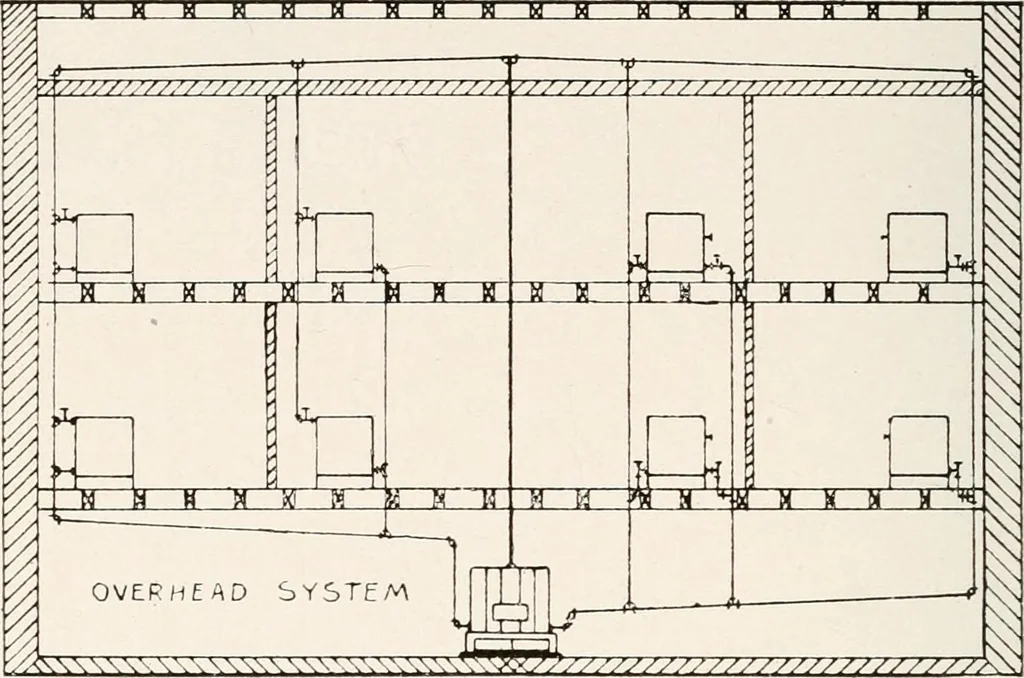

s four methods for overhead piping, the two to the left being forsteam, the two to the right for water. An expansion tanli is not shown, but it is necessaryin the case of water being used, for as the temperature of water rises until at theboiling point it is 5 per cent, greater than at 40 degrees… … supply and return of the nearest radiator, at a point below the radiator connection. Novalves should be placed at any point that can possibly close the connection between theboiler and the tank. To find the size of tank in gallons required, multiply the square feet of surface inthe radiators, if…
