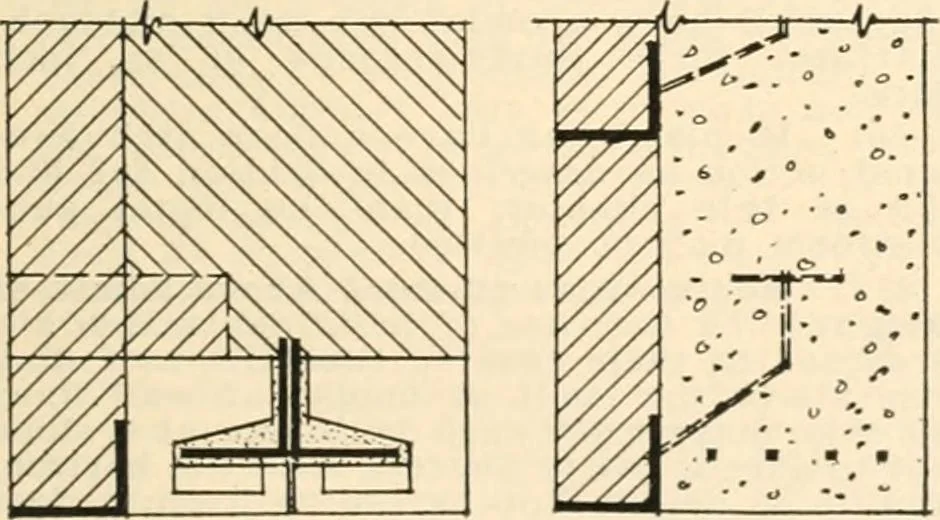

ig. 45. (B) Allowable covering for shelf an-gles, etc.. not figured part of flange section to be 2. Figs. 45, 46, 47. Necessary fire-proof coveringfor beams, girders, etc., for Interior structural parfs(Sec. 018). Fig 46. (A) 4 for briciv (Sec. 846b). Fig. 47. (B) 2 for hollow tile or solid… … Fig-. 48. Pig. 49. Where lintels are fireproofed previously and In-dependentl.v, tlie Commissioner of IJuildings lias ruledtliat the application of the architectural facing maybe supported as shown (Fig. 48, 49). and so much of the web of the same as isnot covered by the arches shall be made…
