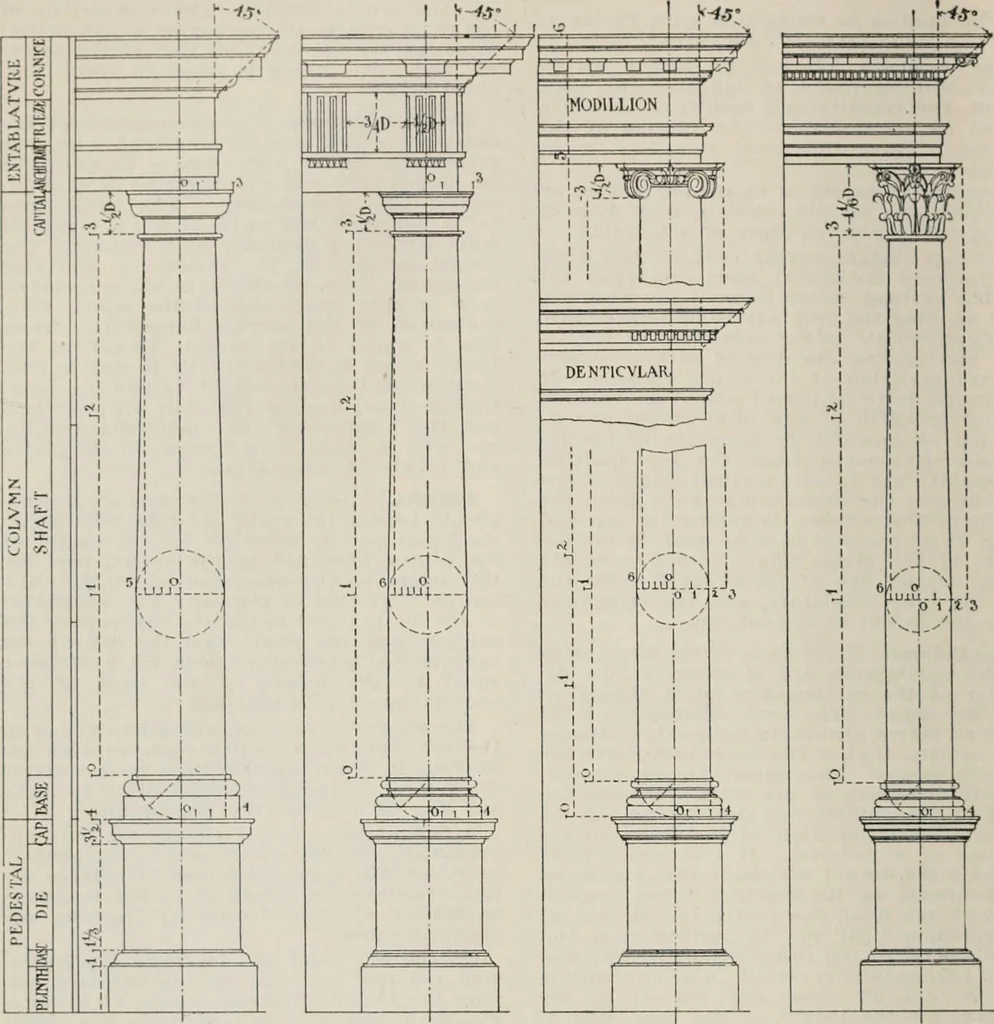

set out. In judging the value of such projections itshould be borne in mind that in execution thehigher vertical faces of the composition willusually be much foreshortened to tlie ob-server and that there will be a consequentinorease In the comparative value of neigh-boring projections. A perusal… … TV SCAN DORIC IONIC CORINTHIAN Height of Plinth, V* height of Pedestal. Height of Pedestal Base, ^^ height of Ped-estal Plinth. Height of Pedestal Cap, % height of Pedes-tal Plinth. Projection of Cap and Plinth, % height ofPedestal Plinth. Projection of Corona over Die, % projectionof Pedestal Cap.…
