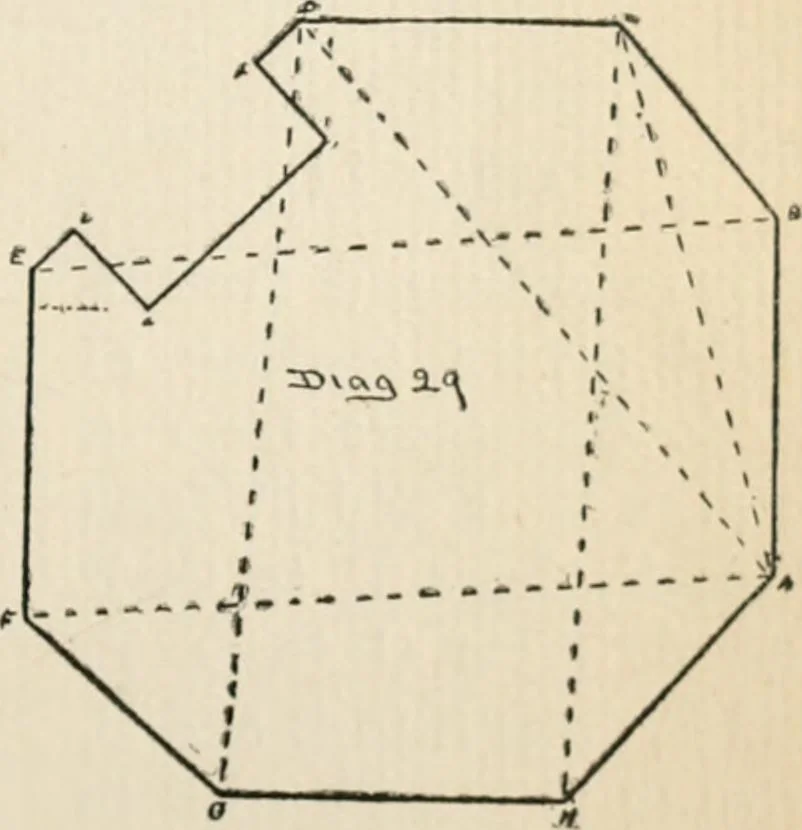

B. From A and B as centers and AO as radiuslocate 0. Fasten tape at 0 and with the recordedmeasures as radius de-scribe arcs for each cor-ner. With A as centerand AH as radius de-scribe an arc cutting theone already drawn at H.Proceed in like mannerall around the room,working from A to E andfrom B… … 44 CARPET-MENS MANUAL To reproduce. Snap chalk line, on which lay the lengthAB. From A, B, and the other points as found, and with the length of the respec-tive sides, describe arcs,proceeding in the ordernamed above in taking themeasures. ---*>. « J3ll\0.30, v / DIAGRAM 30. DIAGRAM 30 Measure…
