Handbook for carpet measurers, cutters and salesmen : including topics of general interest to the trade with illustrations and diagrams (1905)
Lind, John W. (John Wilhelm), b. 1861 · New York : George Lyndoe · leaf 67

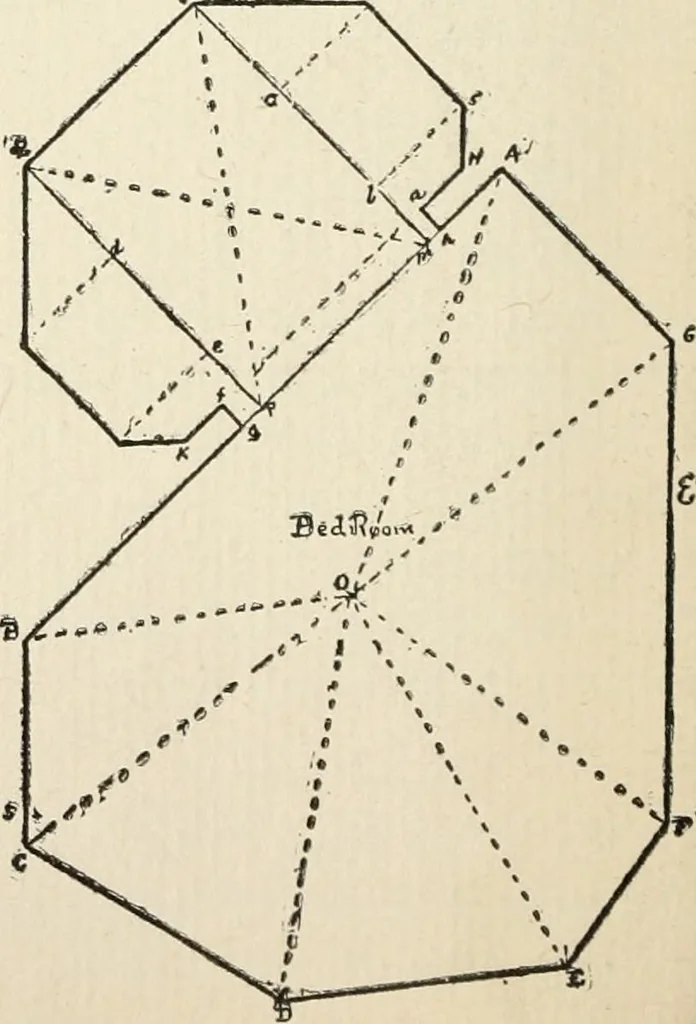

re as in Diag.43. whichever way is most€ convenient. DIAGRAM 42. to this line snap chalk linefrom r and n. MeasureAh, Am, Ap, Ag, AB, also JHa, Hx, HK, measure pn,mr, locate and measure off-sets, sides, and chalk lines.In room measure as inwindow of Diag. 42. usingany two corners to startfrom; or… … DIAGRAM 43. DIAGRAMS AND MEASUREMENTS 51 quickest as the ring end of the tape does not have to be shifted either when measuringor striking out the room. DIAGRAM 44 Chalk line from B to Dto F, A to F, C to D. Findcenter of circle by ProbMeth. 3. Measure andlocate window recessesas per Diag. 39,…
Carpets
