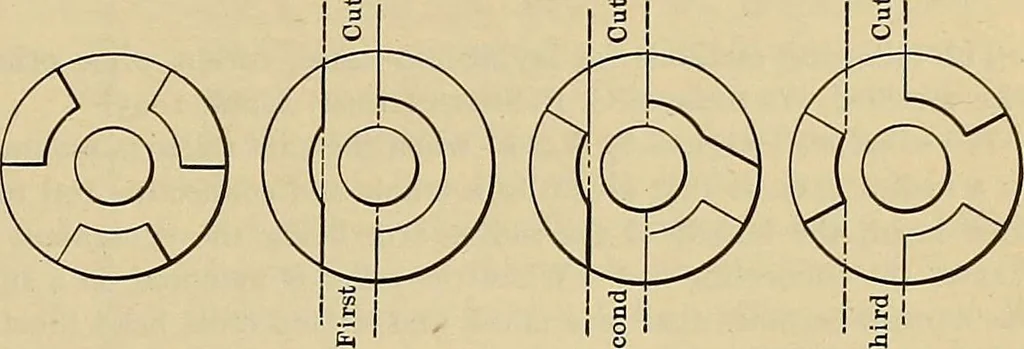

mall part. This will be best understood by referring to Figs.7, 8, 9 and 10. Fig. 7 shows a finished three-tooth clutch; Fig. 8 a single cut with a proper thickness milling cutter set with one side exactly central;Fig. 9 the second cut, which finishes one tooth; and Fig. 10, the thirdcut, which… … Fig. 7. Fig. 8. Fig. 9. Fig. 10. Figs. 7 to 10.—Milling a claw clutch with an odd number of teeth. CAMS The following methods for laying out cams, except when other-wise specified, are those of C. F. Smith {Amer. Mack, 1905) The usual motion given by a cam, when the cam roller is mountedon a radius…
