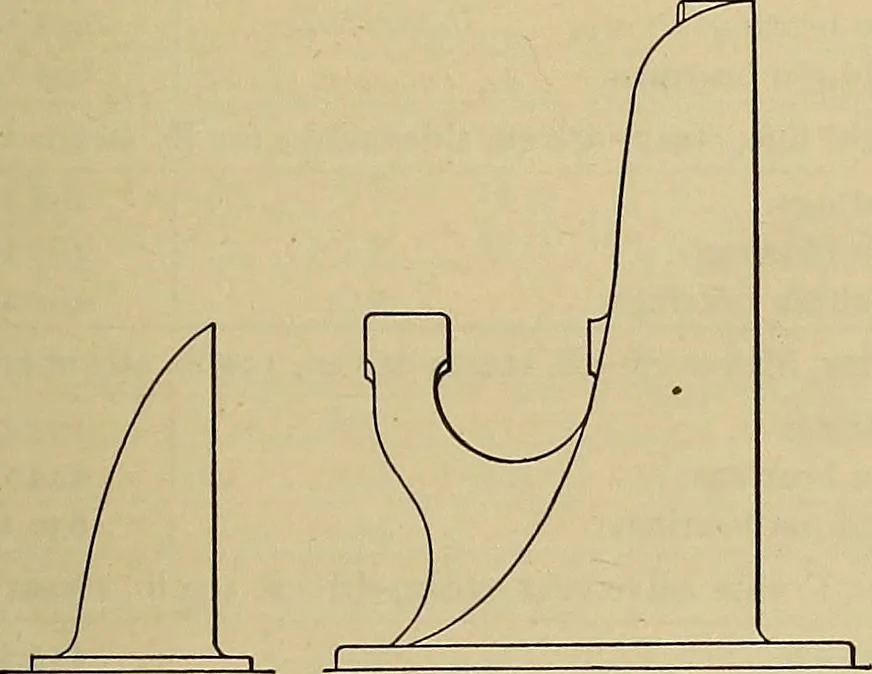

4, and the 2l|-in. size. Fig. 45, wouldeach be laid out, the design and proportions being determinedby the judgment of the designer. The chart. Fig. 46, is then con-structed by plotting the values of each dimension for the large andsmall sizes and connecting the plotted points by straight lines,… … Fig. 42^ Fig. 43. Figs. 42 and 43.—Correct frame construction. the lines are laid ofi to the scale on the right side of the chart. Theseare distinguished from the remaining lines, which are to the scale onthe left, by being dotted. From the chart the table, Fig. 47, isfiUed out. For instance,…
