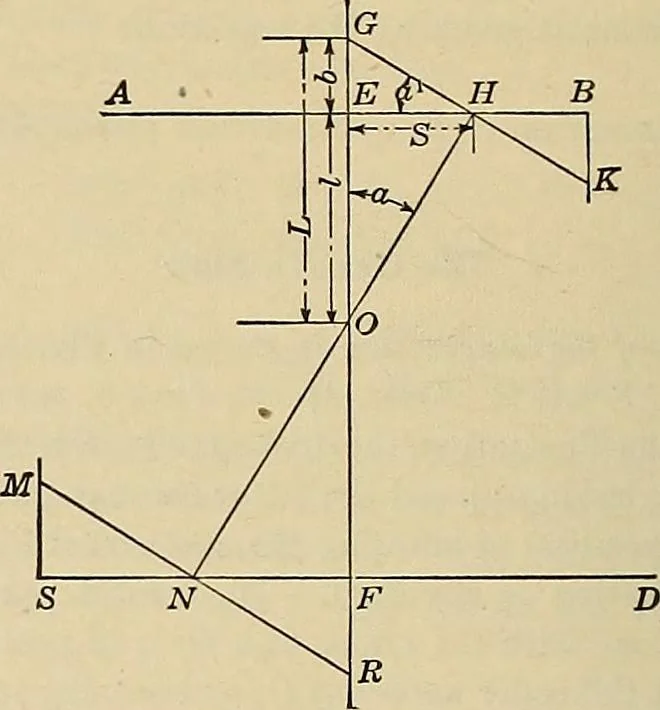

entral stud and length of the levers: Layo£f EH —I stroke AB and FN — i stroke CD on opposite sidesof EF, and draw HN. The intersection of HN with FE is thecenter of oscillation. Draw GK at right angles with HN and Gand K are the middle and extreme positions of the upper pin. DrawMR at right angles… … Fig. 24.—^Laying out vibrating levers.
