Handbook for machine designers, shop men and draftsmen (1916)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 377

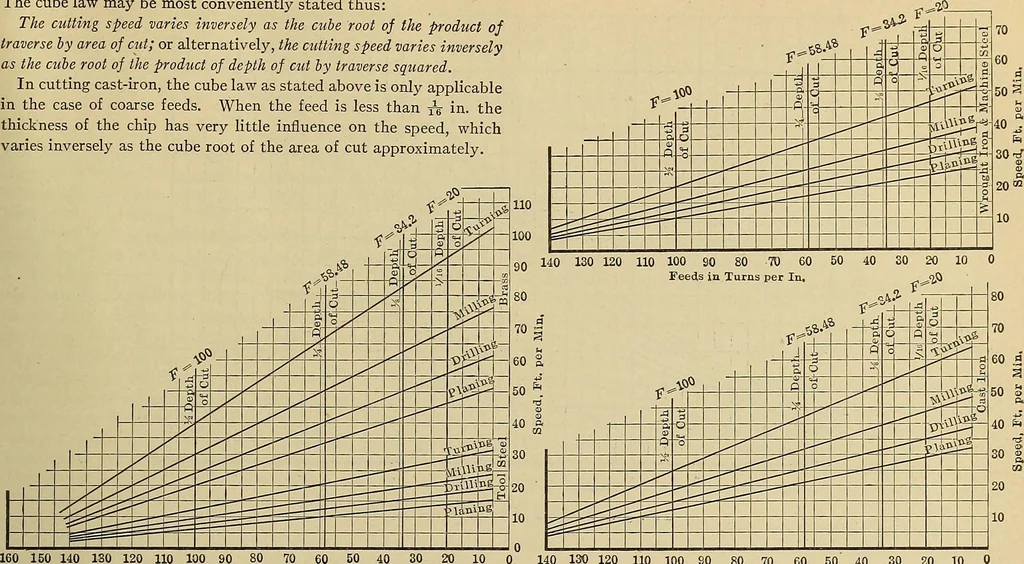

y stated thus: The cutting speed varies inversely as the cube root of the product oftraverse by area of cut; or alternatively, the cutting speed varies itiverselyas the cube root of the product of depth of cut by traverse squared. In cutting cast-iron, the cube law as stated above is only… … 100 90 80 70 60Feeds in Turns per In, 40 30 20 10 140 130 120 110 100 SO 80 70 60 50Feeds in Turns rer In, A piece of cast-iron 2 ins. diameter is to be turned down to if ins. diameter. Follow the line marked turning of the chart forcast-iron to its intersection with the J-in. depth of cut line…
Machine design
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
