Handbook for machine designers, shop men and draftsmen (1916)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 436

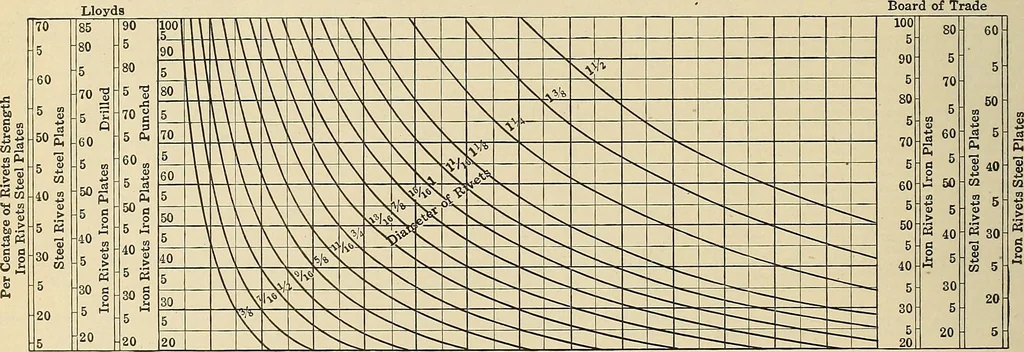

Traced downward from the maximum pitch to the curve for the diameter of the rivets and then to the left where read the per-centage of plate strength.Fig. 24.—Percentage of plate strength of boUer joints. Lloyds … 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56Maximum Pitch divided by number of rivets in Pitch and multiplied by Plate thickness in sixteenths Fig. 25.—Strength of boiler joint rivets compared with the solid plate. from formulas {11) and {v) wherein it is expressed…
Machine design
