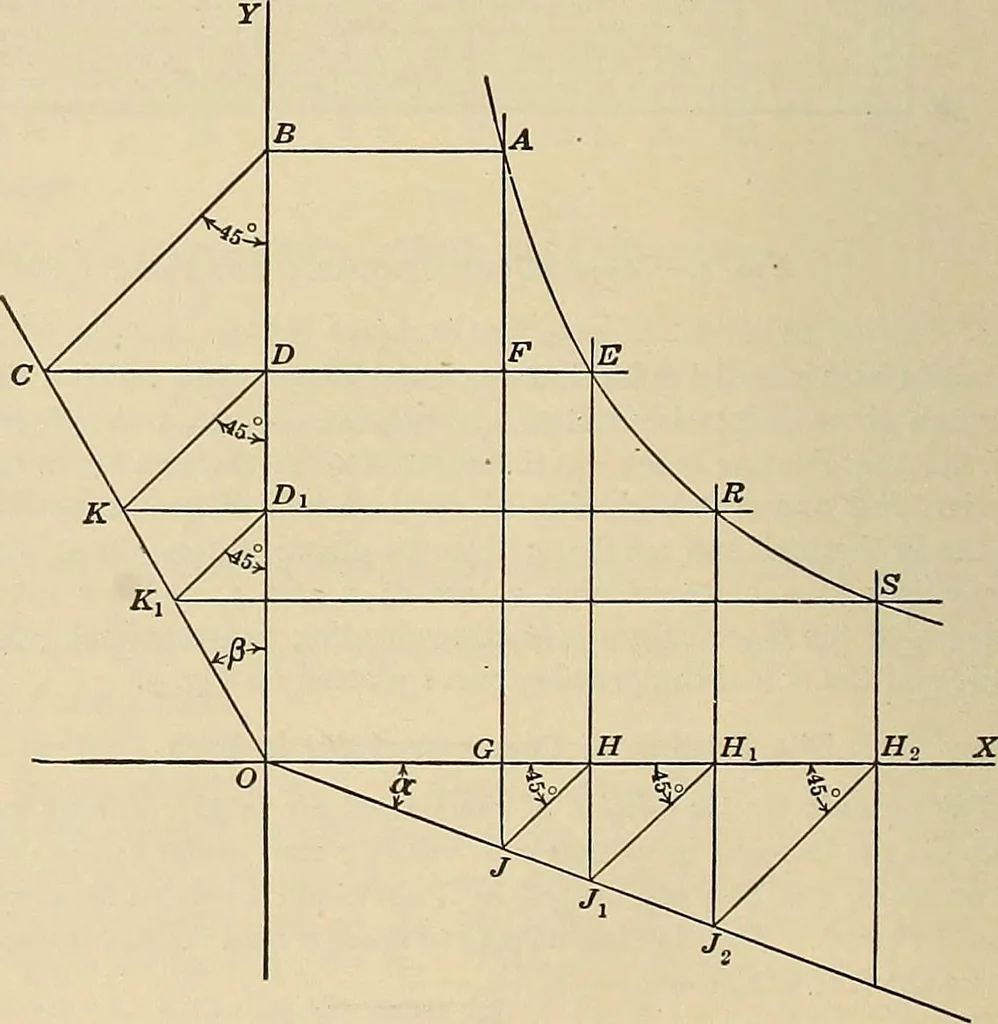

.4 .5 .6 .7 .8 .9 Relative VolumesFig. 8.—Ordinates of the adiabatic curve for air. … Fig. 9.—Construction of the adiabatic curve. COMPRESSED AIR 455 due to the adiabatic curve at the corresponding ordinate of the indi-cator card. The diagram is applicable to high and low pressure cardsalike, the proper initial absolute pressure being taken, of course. For compression from 14.7 lbs.…
