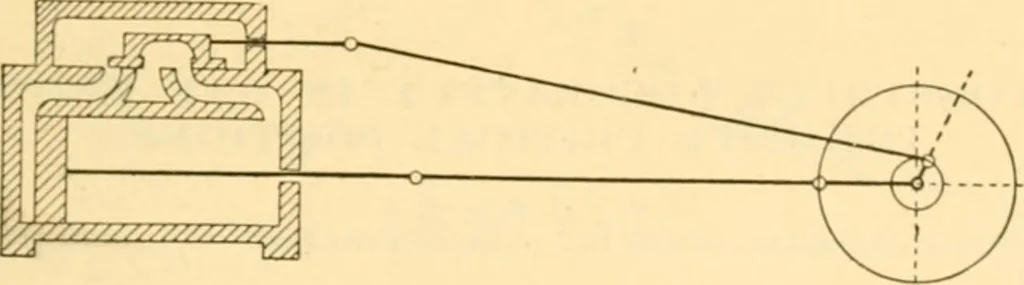

In fig. 14 the piston (also crank) is at head dead center under full boiler pres-.re, and valve is at lead by definition. jy/^.v.v////zz^^-i … In fig. 15 steam port is full open. Eccentric arm is at crank dead center.
