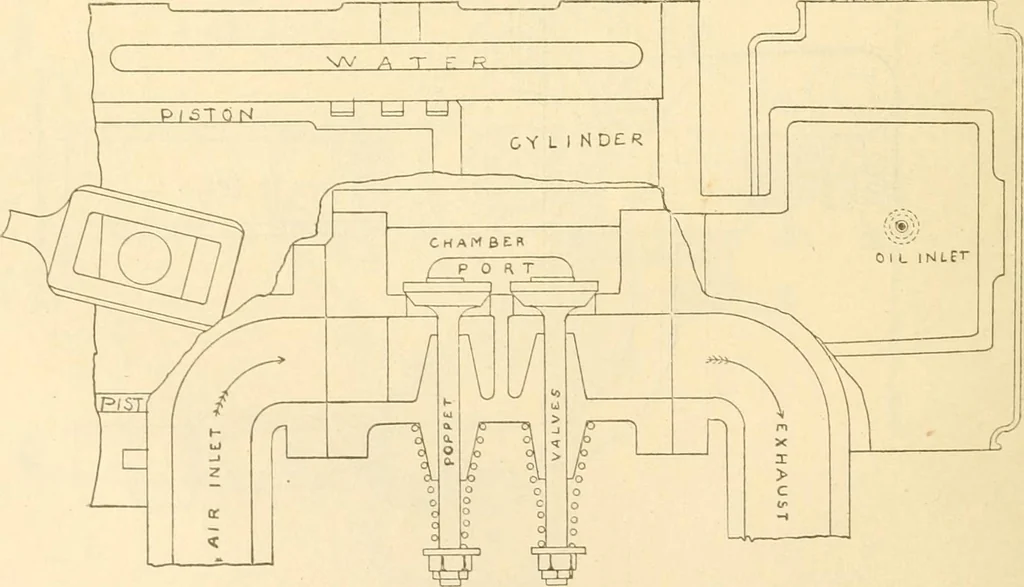

et from the vapor-izer through the overflow outlet back to the tank. During the pistons first orsuction stroke the pump injects the oil (opening the horizontal valve ) throughthe spray nipples (see oil jet, fig. 29) into the vaporizer: but if the by-pass valveis partially or wholly depressed at… … 30. Exhaust=Chaniber Side of Engine. THE HORXSBY-AKROYD OIL ENGINE. 35 of sprin,ii:s they are actuated l)y levers moved by cams on the auxiliary shaft.ThnniKh the port (marked in the figure) leadiui,^ from the exhaust chamber to therear interior of tlie cylinder, the air passes onits way in and the…
